Hafele 329.74.502 Clip Mounting Plate, Salice without Pre-Installed Mounting Screws offers a robust solution for your furniture assembly needs. Designed for use with Häfele Metalla 510 concealed hinges, this mounting plate facilitates a quick and efficient installation process with its innovative quick fixing system. Constructed from durable steel, the plate features a nickel-plated finish that adds both strength and a sleek aesthetic. This model allows for precise adjustments, including a height adjustment via a slot of ±2 mm and depth adjustment through an eccentric mechanism. The thoughtful design includes a screw distance of 32 mm and an edge distance of 37 mm, ensuring compatibility with standard applications. It requires a drill hole diameter of 2 mm, making it a versatile choice for various projects. The Hafele 329.74.502 is not only easy to install with chipboard screws but also ensures reliable performance in both residential and commercial settings. With its depth adjustability and sturdy construction, this clip mounting plate promises to enhance the functionality and longevity of your furniture. Elevate your assembly process with this practical solution from Hafele, where quality meets convenience.

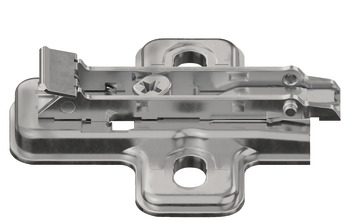

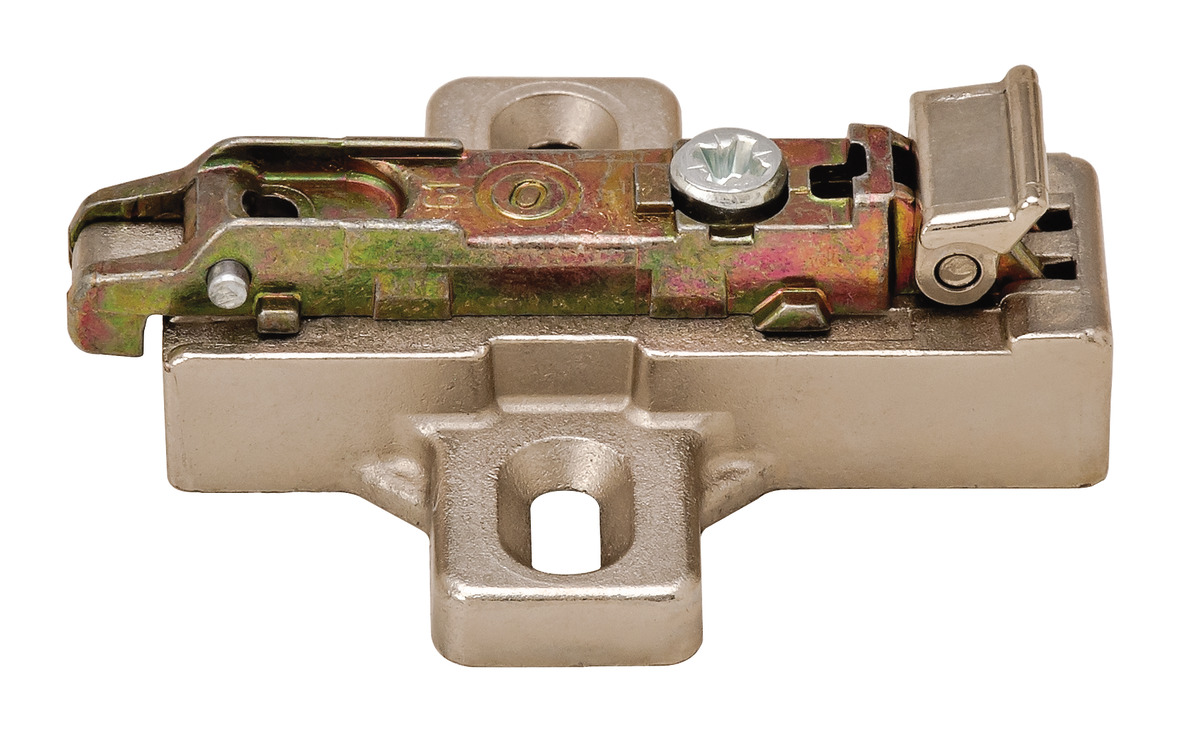

Clip Mounting Plate, Salice without Pre-Installed Mounting Screws
quick fixing system, fixing with chipboard screws, depth adjustable via eccentric, 2 mm, BAV3M29F, steel
Ship via: Can Ship UPS
Adjustment facility: Height adjustment Via slot ±2 mm, Depth adjustment Via eccentric
Area of application: For Häfele Metalla 510 concealed hinges
Color/finish: nickel plated
Distance: 2.00 mm

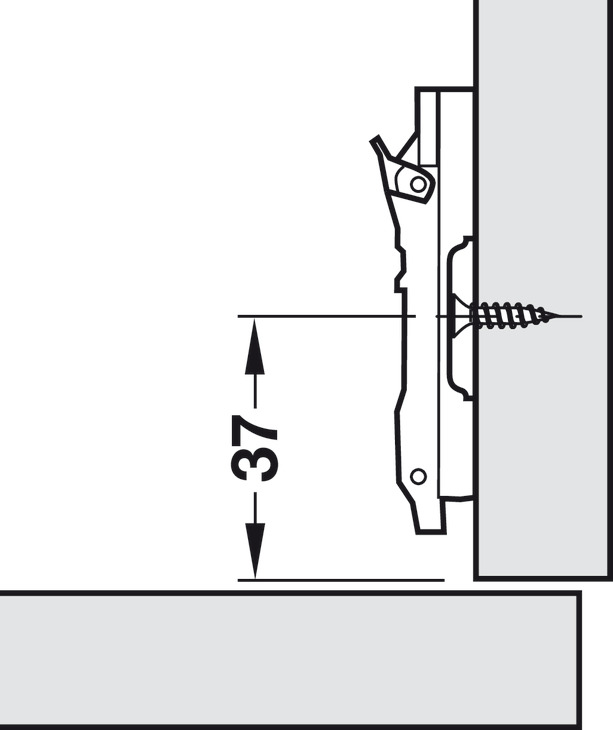

Edge distance: 37.00 mm
Fixing method: Quick fixing system SM
For drill hole Ø: 2.00 mm
Manufacturer: Häfele
Material: Steel
Model: BAV9M29F
Model series: Metalla 510 SM
Mounting plate version: for screw fixing with chipboard screws

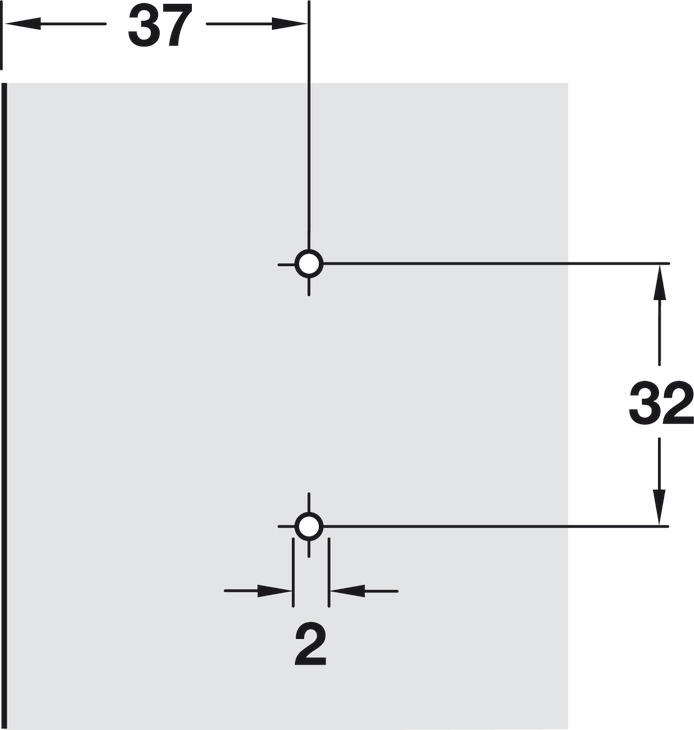

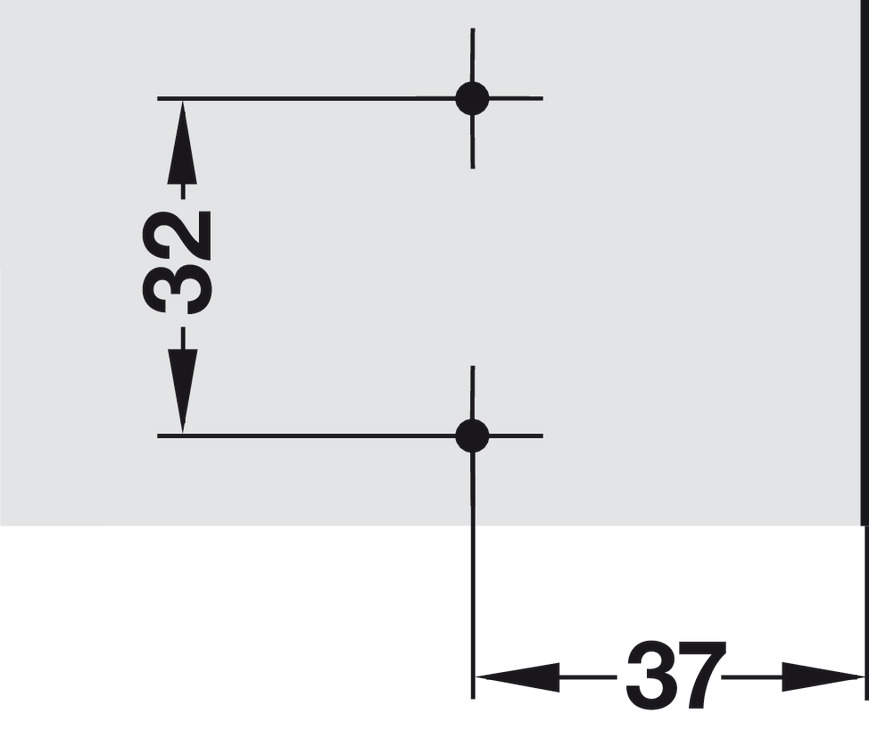

Screw distance: 32.00 mm
Suitable for: Häfele Metalla 510 concealed hinges
