Hafele 372.38.585 Hafele Double Door Lift-Up Fitting Short InstructionsHafele 372.38.585 Double Door Lift-Up Fitting, Hafele Free Fold Short offers an innovative solution for two-piece flaps, providing a seamless blend of functionality and modern design. Designed for wood or aluminum frame doors with a 1:1 division, this model (J6fs) features a sleek gray finish that enhances any cabinetry. This fitting allows high front panels to fold up with minimal effort, thanks to its soft opening and soft closing mechanisms. The multi-position stop function ensures versatility, while the minimum opening resistance enhances user experience. Installation is efficient and straightforward, facilitated by pre-mounted Euro screws and a quick-fixing system, making assembly a breeze. Designed for cabinet heights between 910 and 970 mm and accommodating lid weights from 8.9 to 16.8 kg, the Hafele fitting is ideal for various applications. With a minimum cabinet depth of 10 5/8", it proves beneficial for inset applications. Note that additional concealed hinges and connecting parts for narrow aluminum frames should be ordered separately. Constructed from durable materials, including plastic and nickel-plated steel, the Hafele 372.38.585 ensures longevity and reliability in any setting, making it a perfect choice for professionals and discerning homeowners alike.

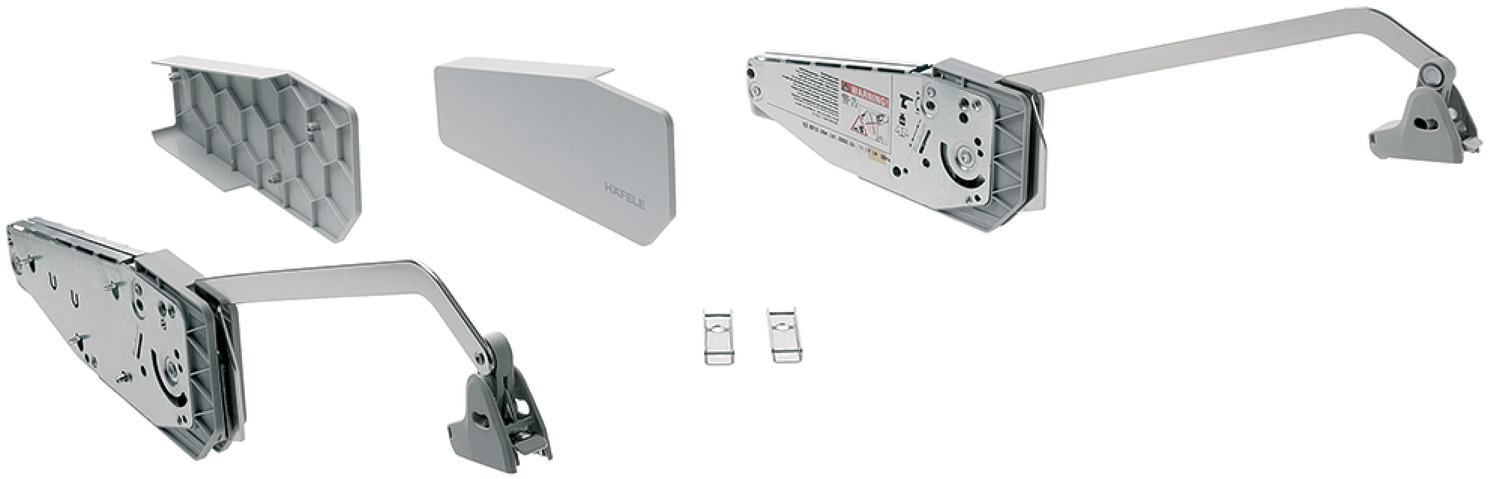

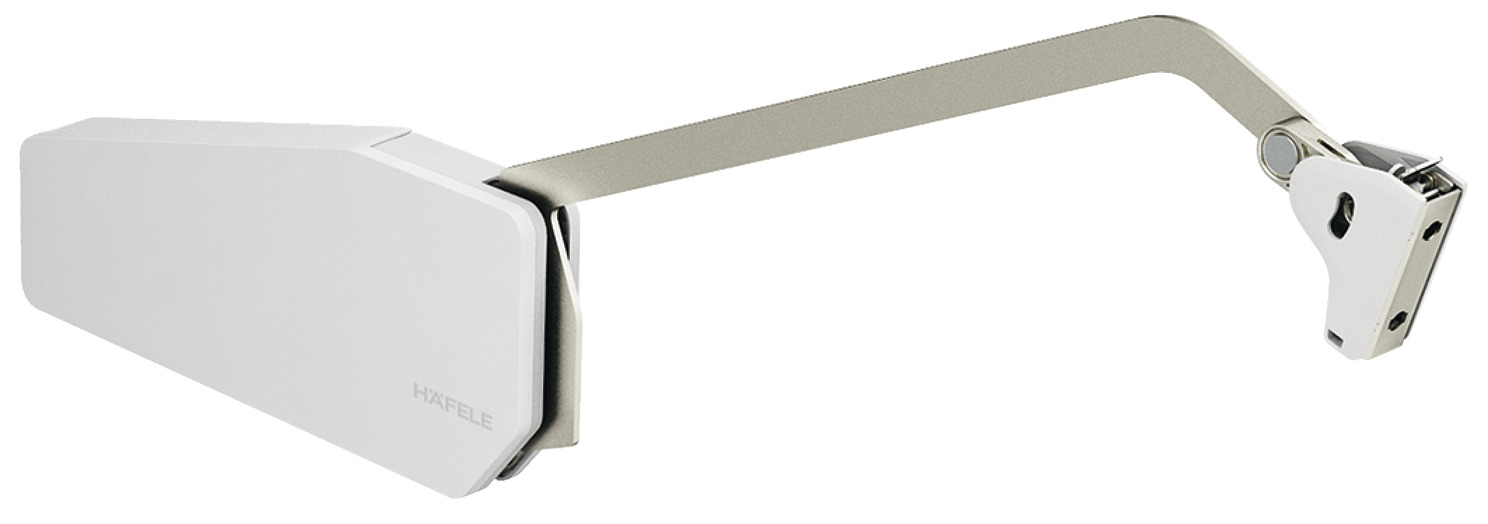

Double Door Lift-Up Fitting, Hafele Free fold short
For two-piece flaps with division 1:1 made from wood or with aluminum frame, Model: J6fs, Gray

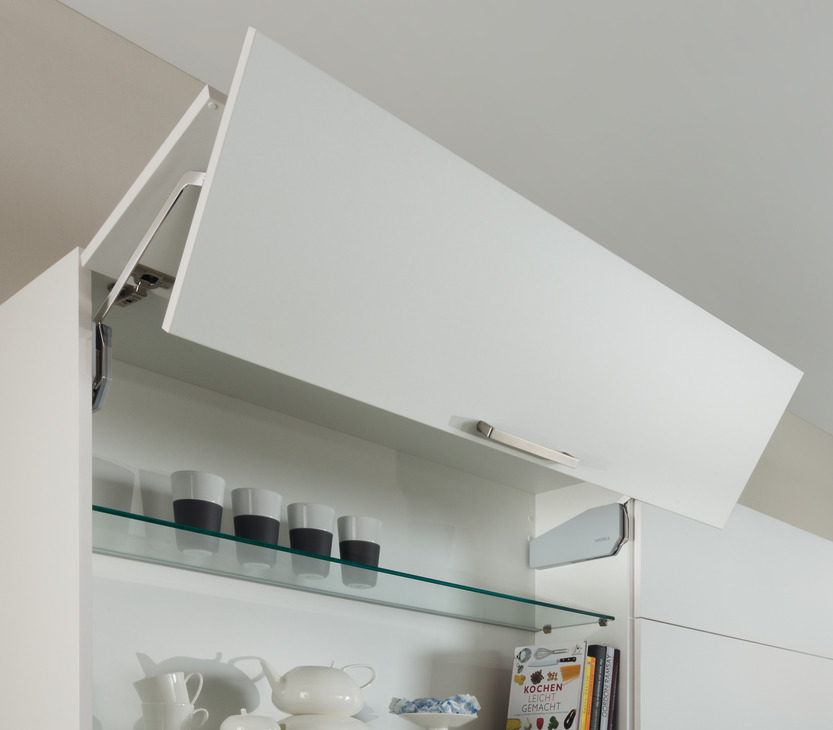

Even high front panels can be folded up in a space-saving way Modern design thanks to clear lines Minimum opening resistance, multi-position stop function and soft opening and soft closing mechanism for a unique operational feel Efficient and time-saving processing thanks to pins, pre-mounted Euro screws and quick fixing system for the front panel
Even high front panels can be lifted up in a space-saving way Modern design with clear-cut contours Minimum opening resistance, multi-position stop function and soft opening and soft closing mechanism for ease in operation Time-saving assembly provided by tabs, pre-mounted Euro screws and clip mounting of front panel Shorter housing depth is beneficial in inset applications

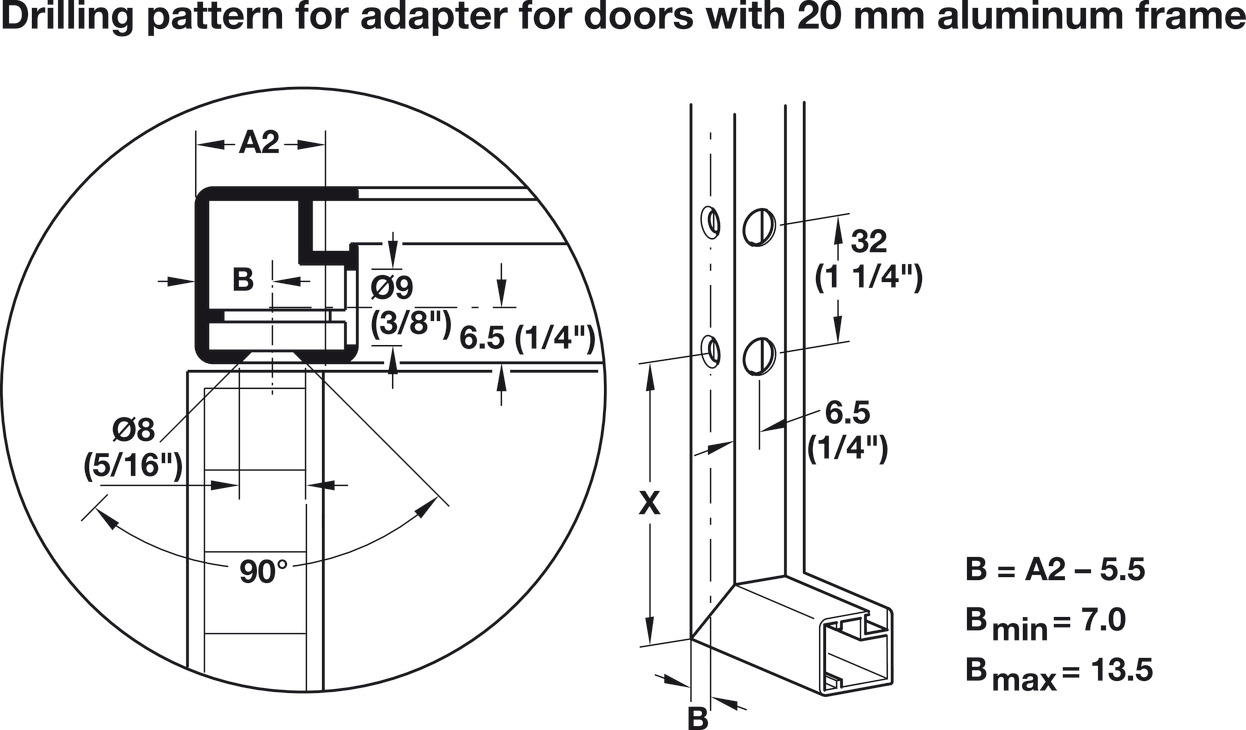

Concealed hinges for mounting the door to the cabinet, connecting hinges and adapters for narrow aluminum frames (if applicable) must be ordered separately. The specified models apply to common door heights and weights. Shorter front panels with higher door weights and taller front panels with lower door weights can also be implemented in individual cases.
Attributes
Ship via: Can Ship UPS
Adjustment facility: Height/side/depth of top front panel (via concealed hinge) and bottom front panel (via centre hinge) Holding power/centre pull (via fitting)
Area of application: For 2-piece or aluminum frame doors of equal size

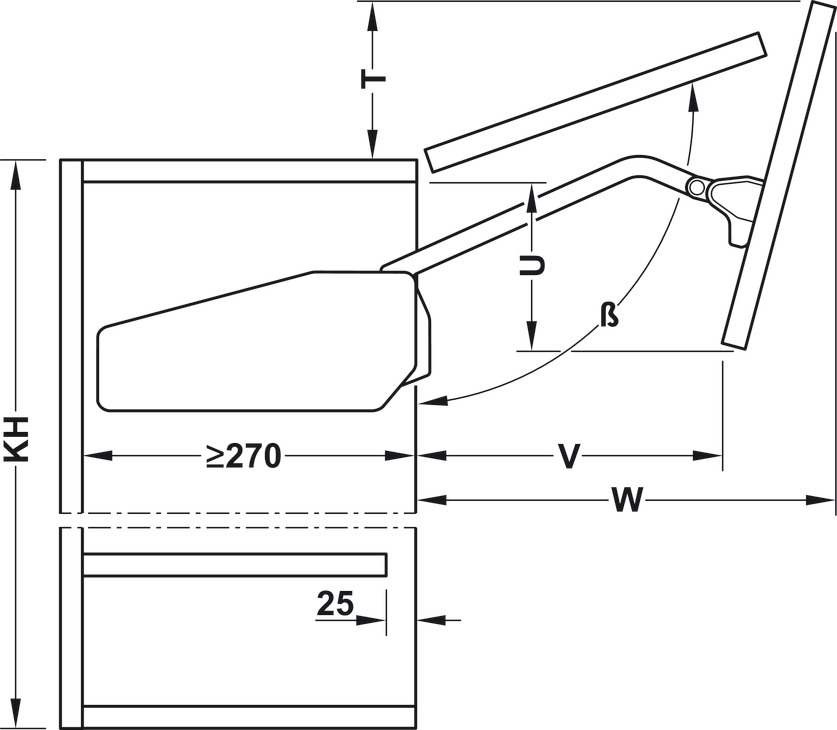

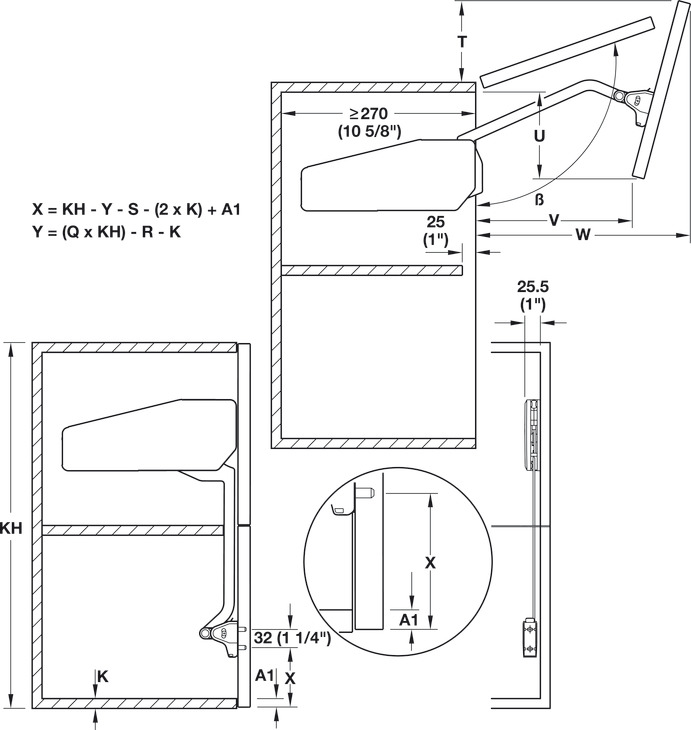

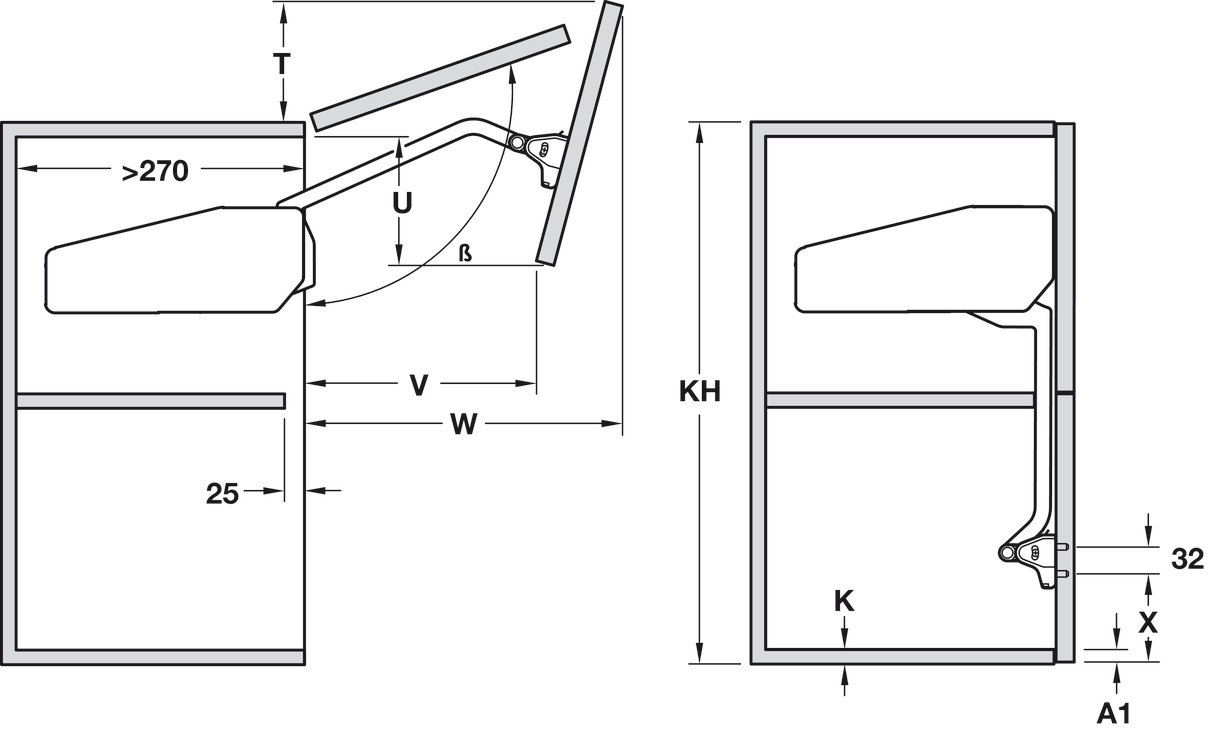

Cabinet depth: Min. 10 5/8"
Color/ Finish cover: Gray
Color/finish: Fitting: Nickel plated
Flap type: two-piece with division 1:1
For cabinet height: 910 – 970 mm
For internal cabinet depth min.: 10 5/8"
For lid weight: 8.9 – 16.8 kg
Lid material: Wood, Aluminum frame
Material: Fitting: Plastic, steel cover cap: Plastic
Model: J6fs
