Hafele 408.30.590 Hawa Concepta Wooden Pivot Sliding DoorsHafele 408.30.590 Wooden Pivot Sliding Doors, Hawa Concepta, is designed for seamless integration in any space, accommodating 1-leaf wooden pivot sliding doors with a weight capacity of up to 25 kg. This innovative system features hinges with a soft-closing mechanism, ensuring smooth operation and a gentle closure every time. The unique scissor technology is engineered to support larger and heavier doors, making it suitable for various room partitioning applications without the need for a base or top panel in wall recesses. With door thickness compatibility ranging from 19 mm to 50 mm, and a maximum door height of 1,850 mm (6' 13/16"), this system is versatile and adaptable to your project needs. Installation is simplified for both left and right-hand use, and all necessary adjustments can be made easily from the front of the cabinet. The running gear, guided by ball bearings, provides optimal performance, while the supplied components-including a scissor assembly, door stoppers, and mounting instructions-offer everything needed for a complete setup. Elevate your space with the Hafele 408.30.590, where functionality meets elegant design. Perfect for knowledgeable homeowners and building professionals alike.
Wooden Pivot Sliding Doors, Hawa Concepta
For 1-leaf wooden pivot sliding doors, hinges with soft closing mechanism, Infront/Vorfront, for wooden doors, door weight 25 kg, hinges with soft closing mechanism

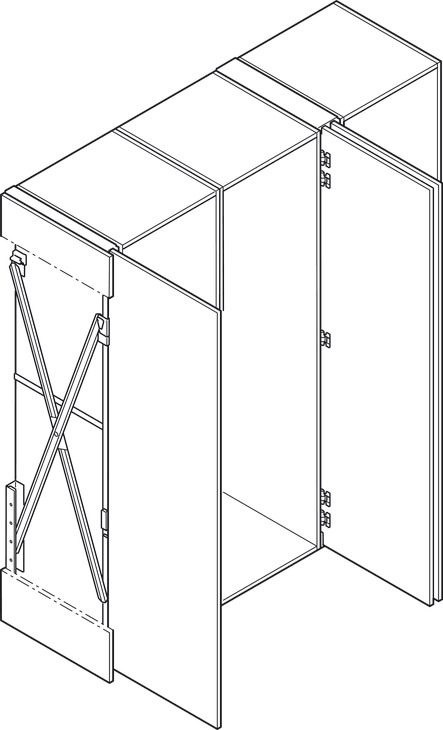

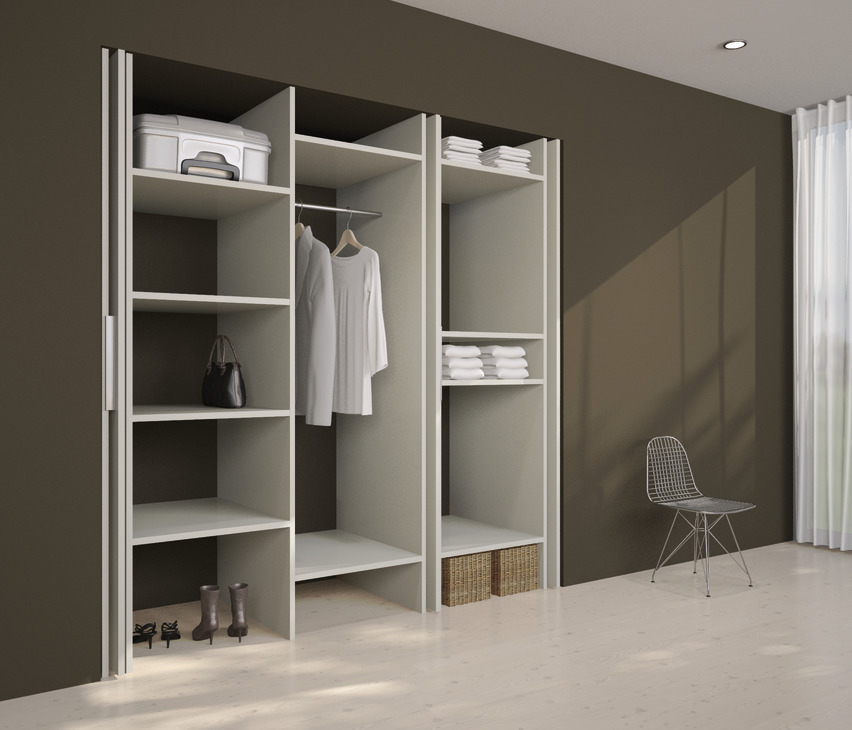

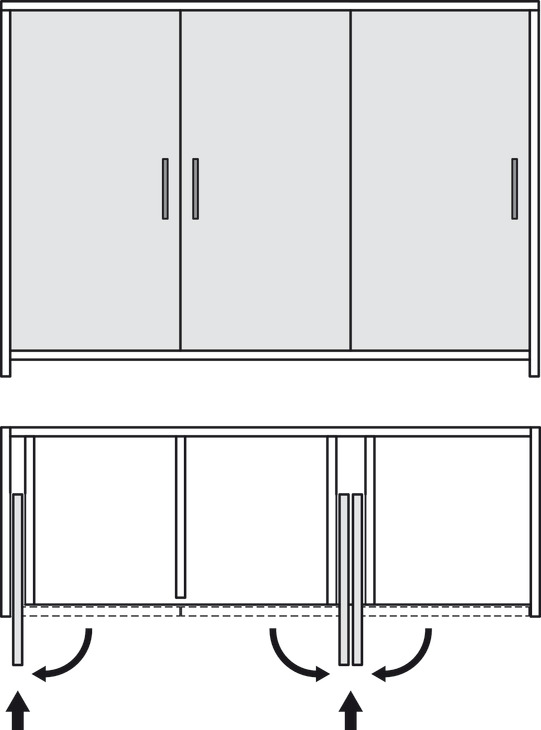

The door is pulled into the pocket automatically Suitable for room partitioning as there is no need for a base panel and top panel in wall recesses For left and right hand use Unique scissor technology accommodates large and heavy doors All adjustments are made from the front of the cabinet

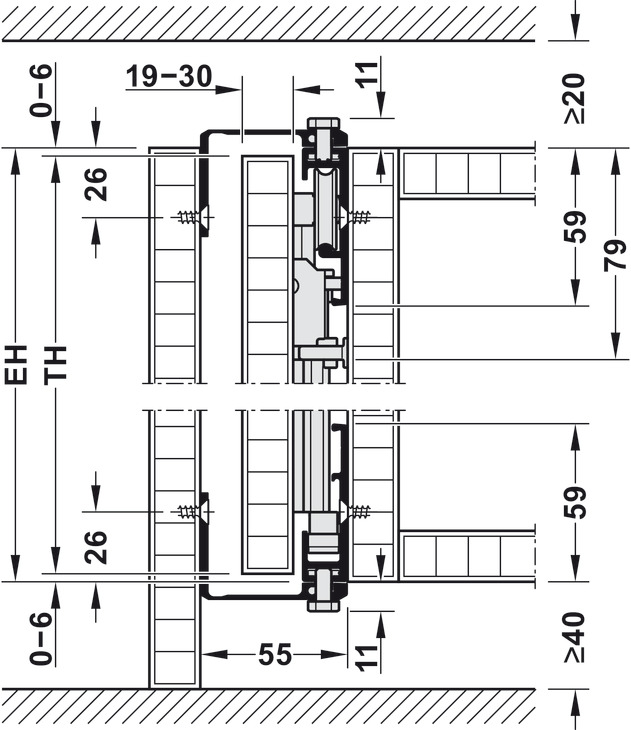

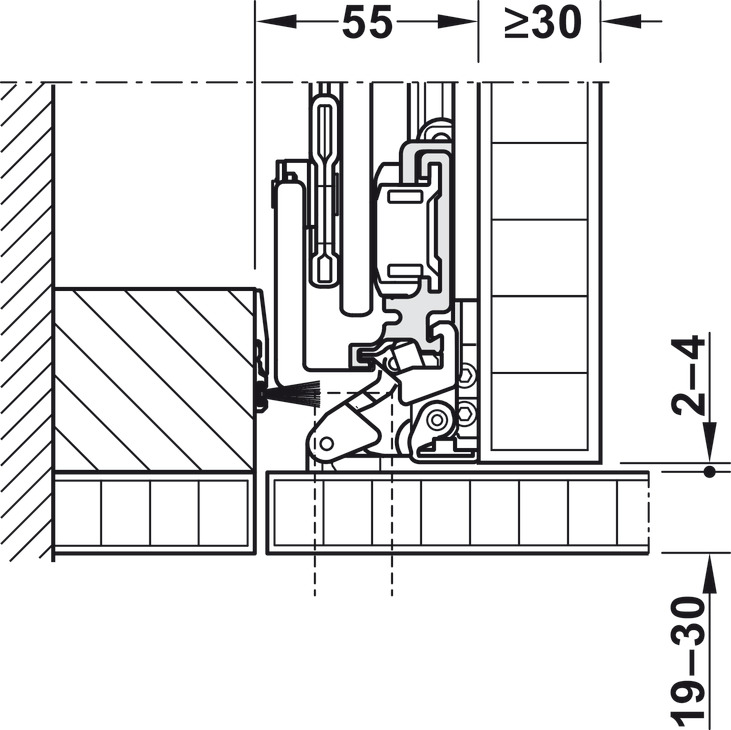

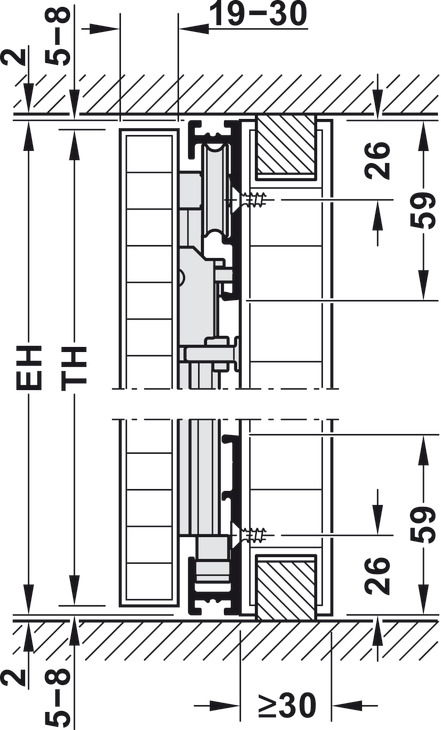

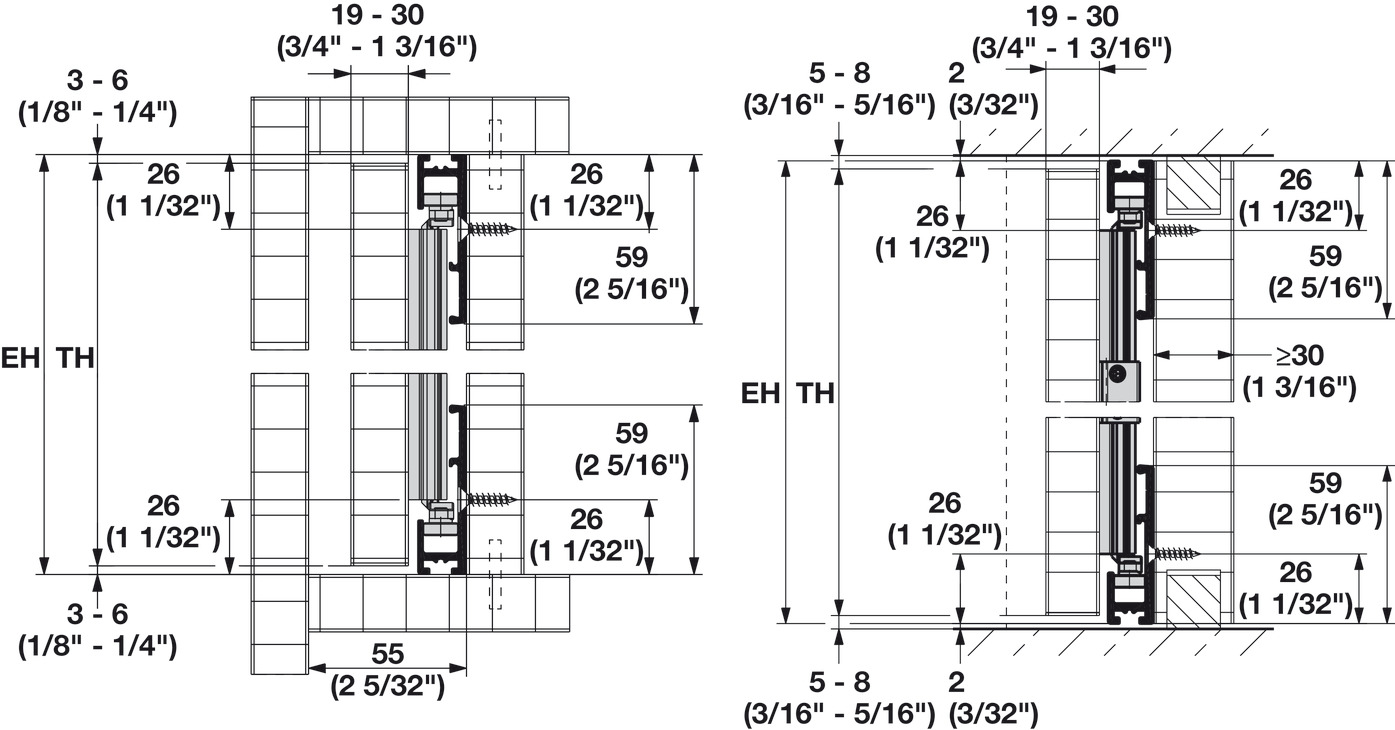

Door Thickness: Straight edge: 19 - 30 mm (3/4" - 1 3/16") Rabbeted edge: >30 - 50 mm (>1 3/16" - 1 15/16")
A set is for one door.
Attributes
Ship via: Can Ship UPS
Area of application: For 1 door
Door weight max.: 55 lbs
For door height: 1250 – 1,850 mm
For door height (inches): 4' 1 3/16" - 6' 13/16"
For door material: wood
For door thickness: 19 – 30 mm
For door thickness max.: 1 15/16"
For door thickness min.: 3/4"
For door weight: 10 – 25 kg
For door width (inches): 11 13/16 - 29 1/2"
Installation: For left and right hand use
Length (inch): 2' 1 19/32"

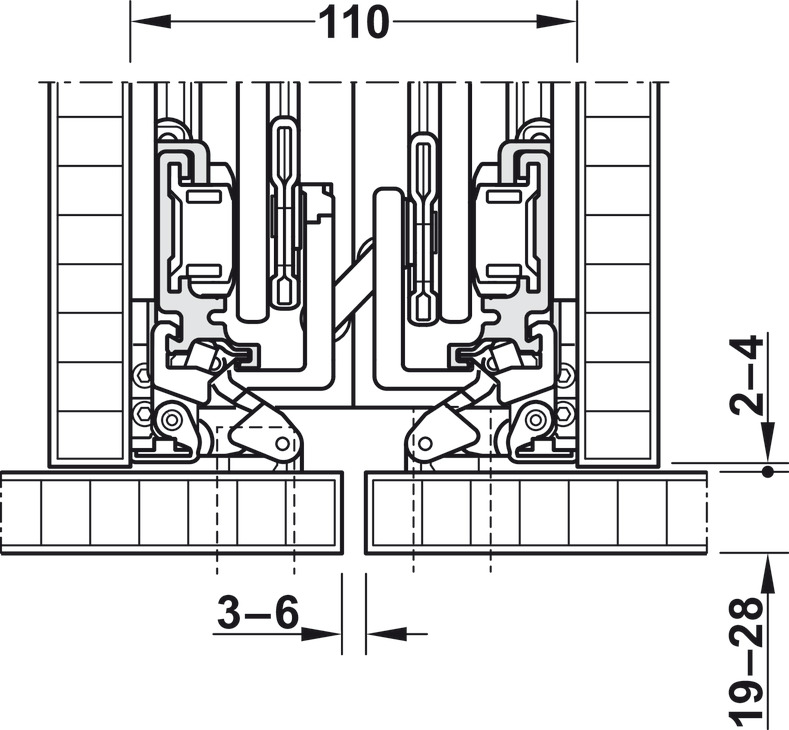

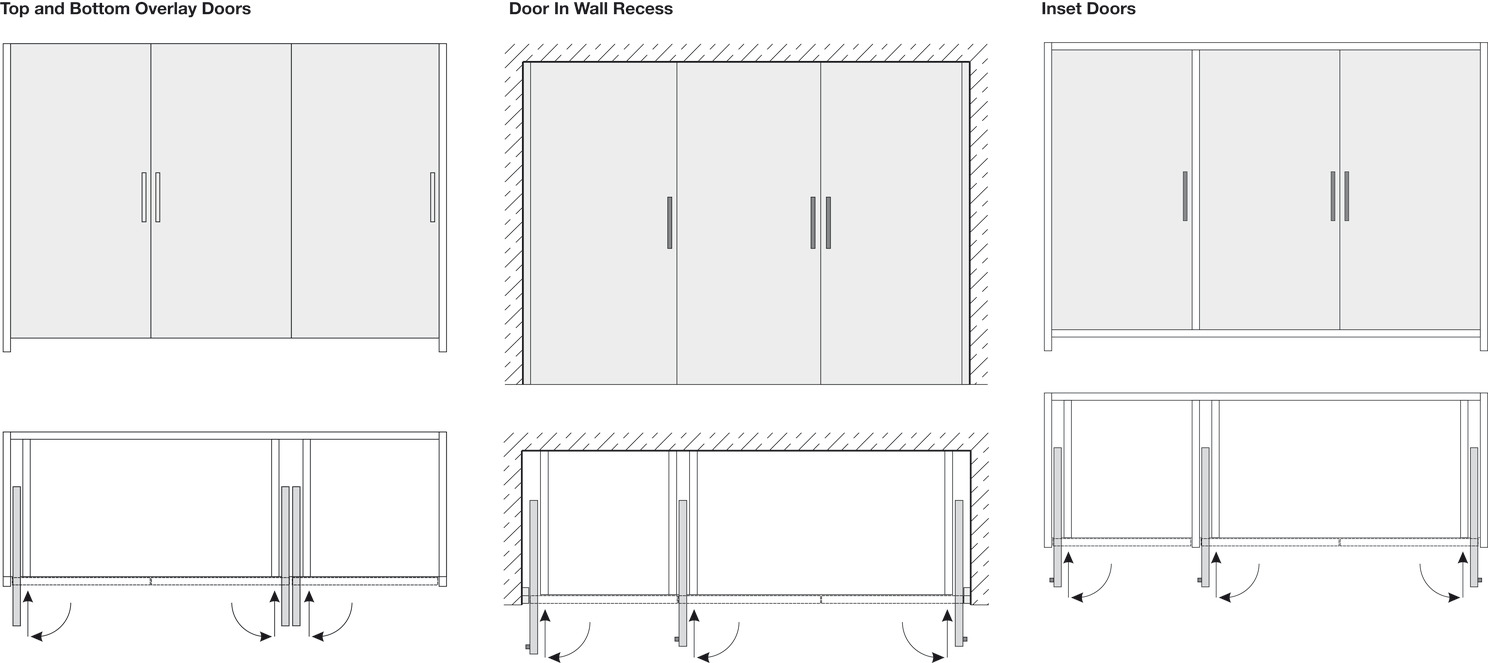

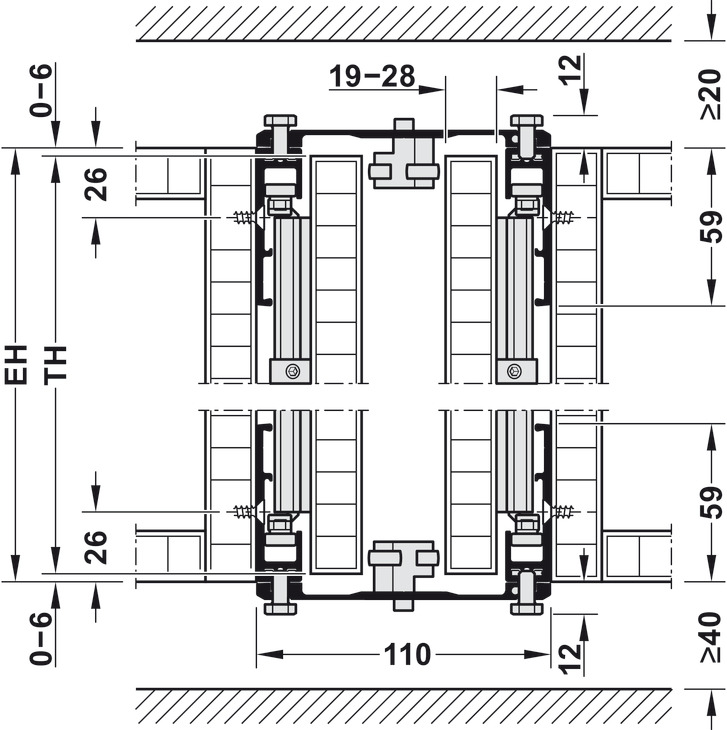

Order reference: Ⓑ Parking pocket for 1 door Length 650 mm: 1 set of Cat. No. 408.30.243 Length 900 mm: 2 pieces of Cat. No. 408.30.092 Ⓒ, Ⓓ Parking pocket for 2 doors Construction with adjustable feet Profile for top and bottom: Length 650 mm: 2 pieces of Cat. No. 408.30.093 Length 900 mm: 2 pieces of Cat. No. 408.30.094 Construction with fixed plinth Profile for top: Length 650 mm: 1 pieces of Cat. No. 408.30.093 Length 900 mm: 1 pieces of Cat. No. 408.30.094 Profile for bottom: Length 26 mm: 1 pieces of Cat. No. 408.30.095
Running gear guided by: Ball bearing
Running gear version: 40/50 kg: 2 rollers
Supplied with: 1 scissor assembly with two guides 1 spacer profile 1 door stopper with clip-in stopper 3 alternative profiles and brushes 1 pair of cover caps 1 end position damper 1 self closing mechanism for door 1 soft stopper bracket 1 upright with 2 play-free guides 3 concealed hinges 2 guide tracks Mounting instructions
Version: Hinges with soft closing mechanism
