Richelieu 189K1291 SCORRI 10KG Hardware SetRichelieu 189K1291 SCORRI 10KG Hardware Set offers an efficient and stylish solution for your wood cabinet doors, accommodating a weight capacity of up to 22 lb (10 kg). This top hung sliding system is specifically designed for inset applications, ensuring a seamless and elegant integration into your cabinetry. The hardware set features upper wheels for smooth operation and includes a rear mount concealed suspension housing with a height adjustment pin, allowing for precise alignment. It is compatible with wood doors ranging from 5/8 in (16 mm) to 7/8 in (22 mm) thick, providing flexibility in your design choices. The set also comes with concealed track stoppers equipped with a retaining device, enhancing safety and functionality. Installation is straightforward, with provisions for both recess and surface mount tracks available separately. For optimal results, it is crucial to use metric dimensions during installation, ensuring accuracy in cutting and drilling. The maximum door height is 48 in, with a width capacity of 11 3/4 in to 39 3/8 in, making it versatile for various applications. Constructed from durable materials such as nylon, aluminum, and plastic, the Richelieu SCORRI hardware set combines quality and practicality, making it an ideal choice for furniture, cabinet, and storage projects.

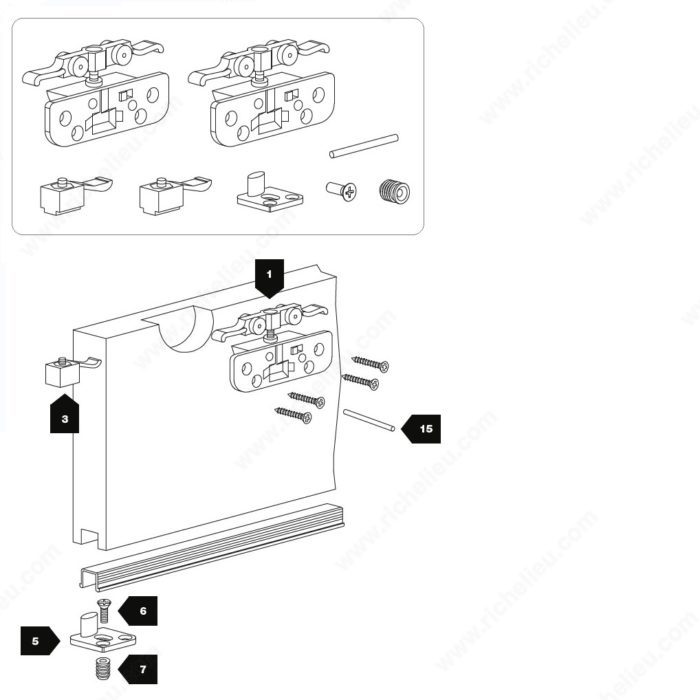

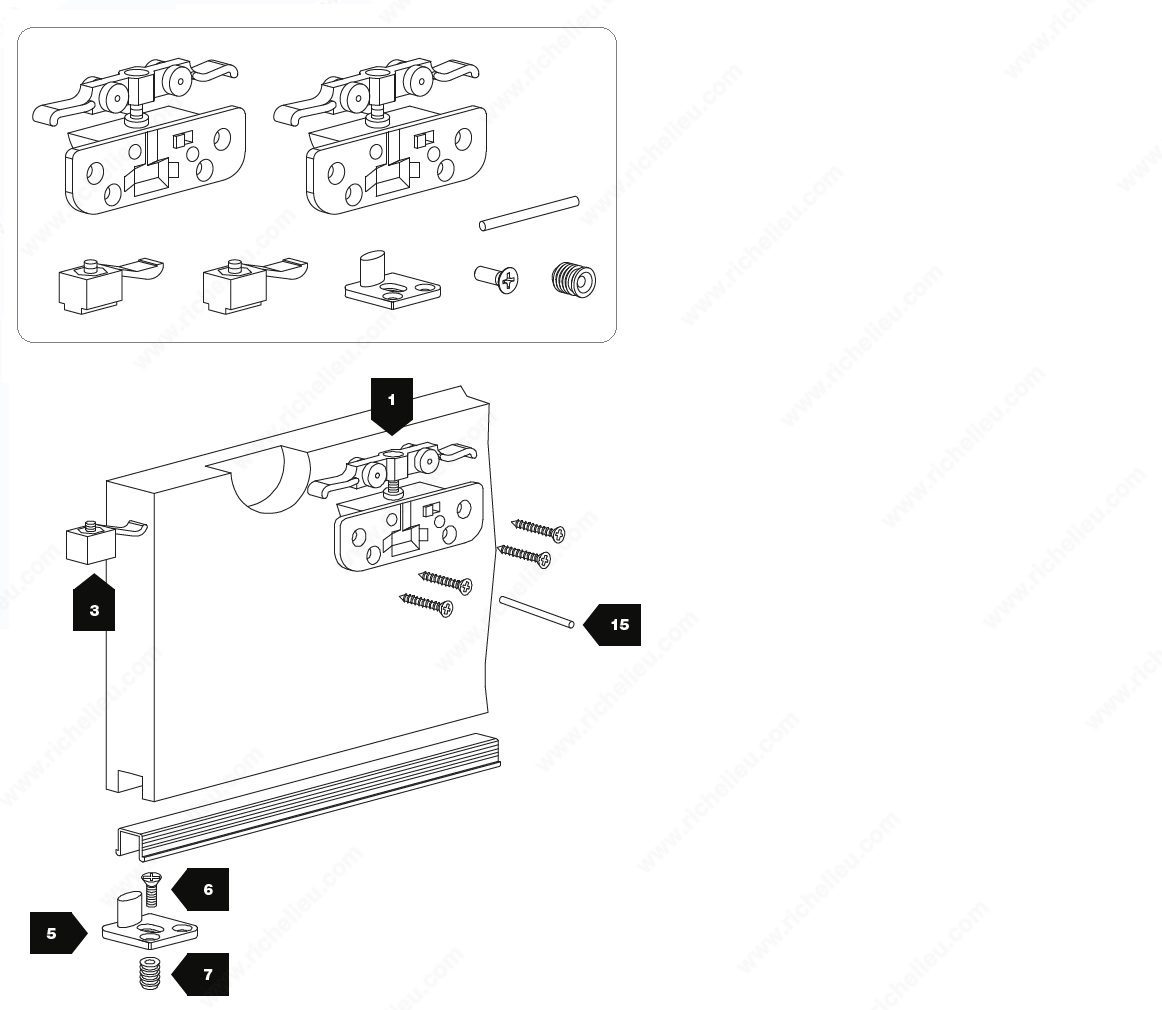

SCORRI 10KG Hardware Set
The SCORRI 10KG hardware sets with upper wheels for one wood cabinet door with weight capacity of 22 lb (10 kg).
Features:
- Top hung running sliding system for inset applications
- Rear mount concealed suspension housing with height adjustment pin
- Recess mount hardware for wood doors 5/8 in (16 mm) to 7/8 in (22 mm) thick
- Includes concealed track stoppers with retaining device
- Recessed and surface mount tracks sold separately
- Simple and flexible installation
IMPORTANT: Use metric dimensions for greater accuracy during installation. Cut a groove 10 mm by 9 mm at the bottom of the door for the bottom guide. Drill 35 mm by 11 mm deep without going through a European style concealed hinge, offset as per the instructions.
Attributes
Adjustable: Yes
Application: Furniture, Cabinet, Storage
Detailed Door Movement: Single sliding, Bypassing
Door Height: Max. 1 219 mm
Door Installation: Top Hung
Door Material: Wood
Door Movement: Straight Sliding
Door Position: Inset/Inlay
Door Thickness: 16 to 22 mm
Door Width: 300 to 1 000 mm
Drilling: 35 mm
Drilling Depth: 11 mm
Load Capacity: 22 lb*
Manufacturing Material: Nylon, Aluminum, Plastic
Material: Plastic, Aluminum, Nylon
Maximum Door Width: 300 to 1 000 mm
Number of Doors: 1
Packaging Format: Box
Product #: 189K1291
Product type: Hardware Set
Product №: 189K1291
Roller Position: Upper
Stopper: Two
Unit: Set
Weight Capacity per Door: 10 kg
