Richelieu 429216140 Concealed Steel Hinge for Hinge 216Richelieu 429216140 Concealed Steel Hinge for Hinge 216 combines modern aesthetics with robust functionality. Designed for both wood and metal doors, this hinge boasts a sleek, bright chrome finish that enhances the overall look of any cabinetry or door application. With a hinge opening angle of +180°, it provides maximum accessibility, making it ideal for environments where space is at a premium. Installation is straightforward thanks to its screw-on fixing type, and the hinge is reversible, accommodating various door configurations. The dimensions are tailored for efficiency, with a minimum door thickness of 1 3/8 inches and a leaf mortise depth of 15/32 inches. Its design includes a door/jamb gap of 15/64 inches in the open position, ensuring a snug fit that reduces drafts and enhances aesthetic appeal. With a fire resistance rating of 20 minutes, the Richelieu concealed hinge meets safety standards (UL R13634), making it a reliable choice for both residential and commercial applications. Additional features include a mortise mounting type and included screws for a hassle-free installation. For building professionals and discerning homeowners alike, the Richelieu 429216140 hinge delivers superior performance, durability, and style.

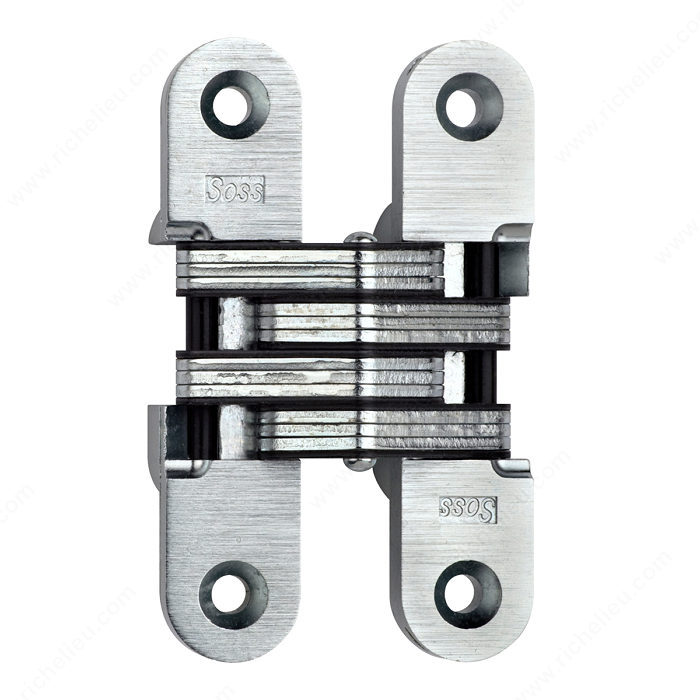

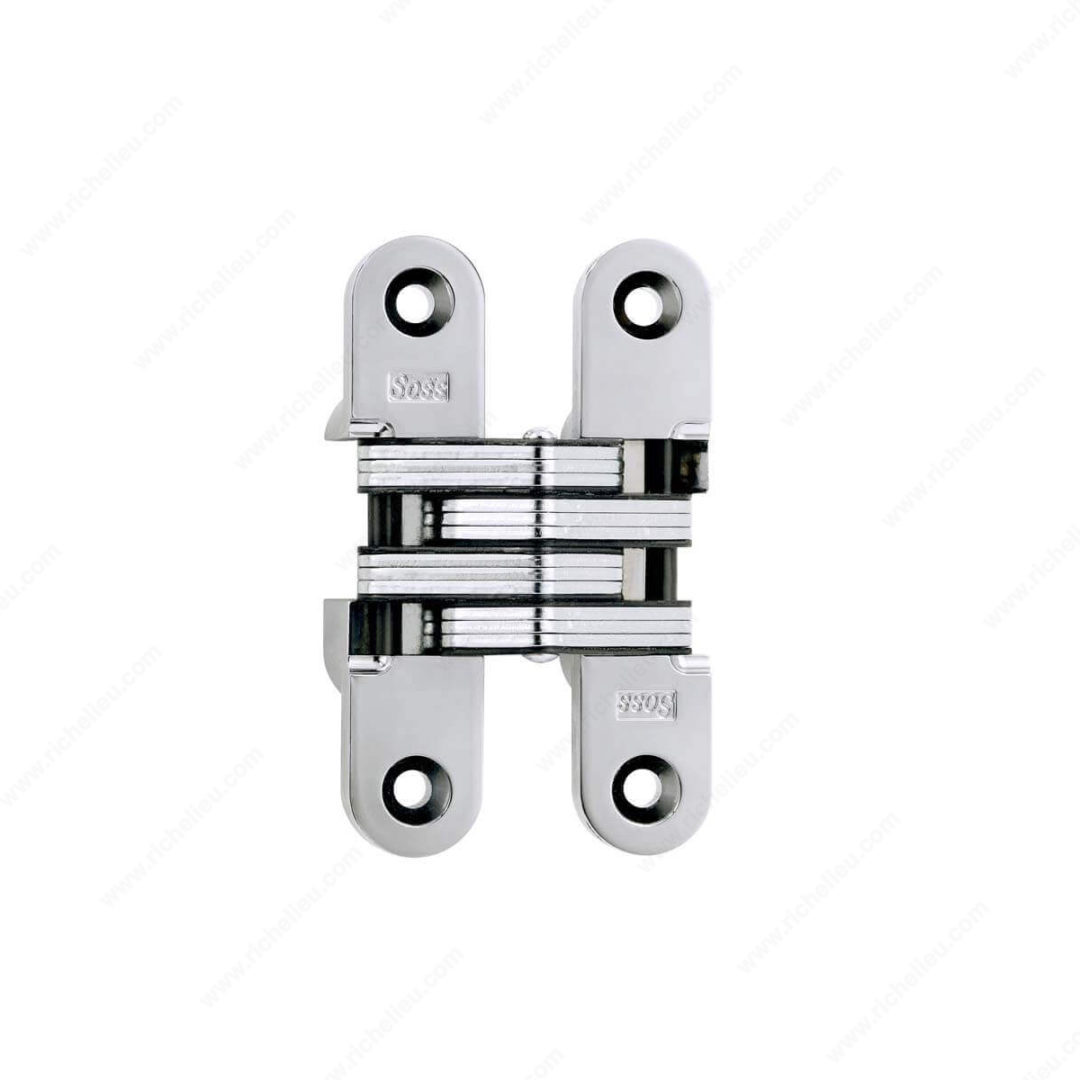

Concealed Steel Hinge - For Hinge 216
Richelieu's concealed hinges offer superior appearance and durability with contemporary and functional style. They easily install and can be used for many applications on wood or metal doors to meet all your needs.
Attributes
Ship via: Can Ship UPS
Cabinet Angle: 180°
Center to Center (mm): 3 5/8 in

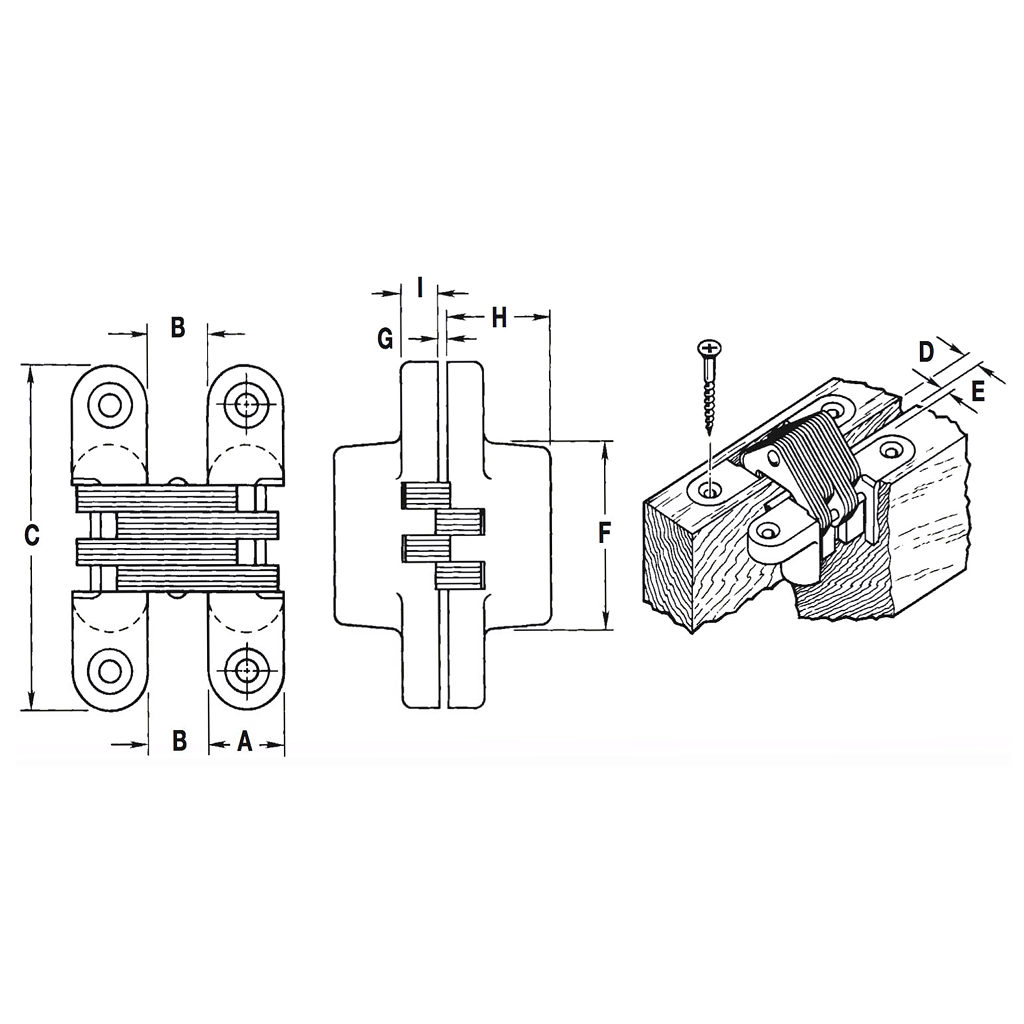

Dimension A: 1 in
Dimension B: 47/64 in
Dimension C: 4 5/8 in
Dimension D: 15/64 in
Dimension E: 1/4 in
Dimension F: 2 19/32 in
Dimension G: 1/16 in
Dimension H: 1 15/32 in
Dimension I: 15/32 in
Door/ Jamb Gap: 15/64 in
Door/ Jamb Gap (mm): 7/32 in
Door/ Jamb Gap in Closed Position: 1/16 in
Door/ Jamb Inset: 1/4 in
Door/ Jamb Inset (mm): 23/32 in
Finish: Bright Chrome
Fire Resistant: 20 minutes
Fixing Type: Screw-On
For Hinge #: 216
Handedness: Reversible
Height: 1 15/32 in
Hinge Opening Angle: +180°
Leaf Body Mortise Length: 2 19/32 in
Leaf Gap: 47/64 in
Leaf Mortise Depth: 15/32 in
Length: 4 5/8 in
Material: Steel
Minimum Door Thickness: 1 3/8 in
Mounting Type: Mortise
Product #: 429216140
Product number: 429216140
Screw/ Nail: Screw/Nail (Included)
Standards and Certifications: UL R13634
Type of Hinge: Wood or Metal
Width: 1 in
Wood Screw Sizes: #14 x 1-1/2" (6.3 mm x 38 mm)
