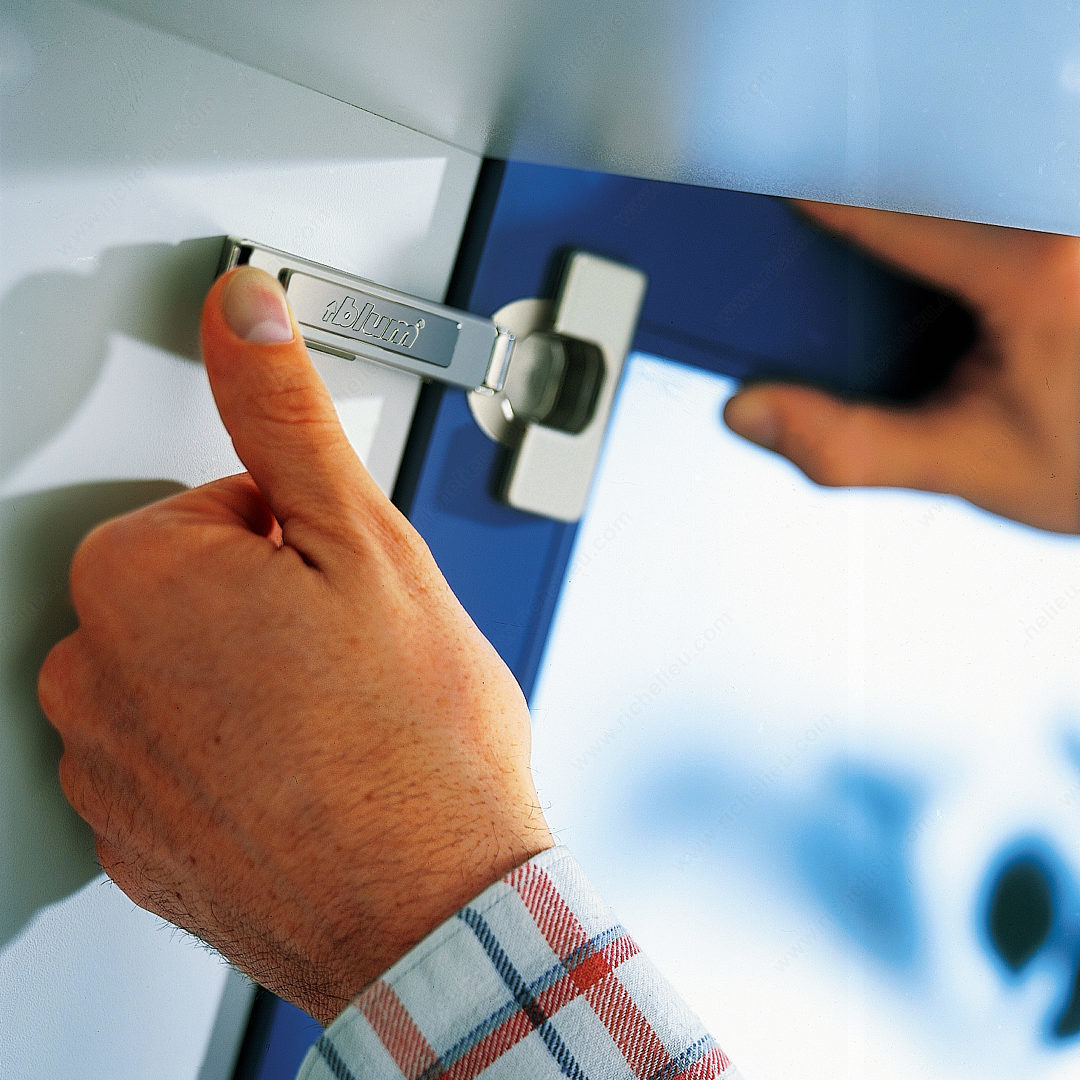

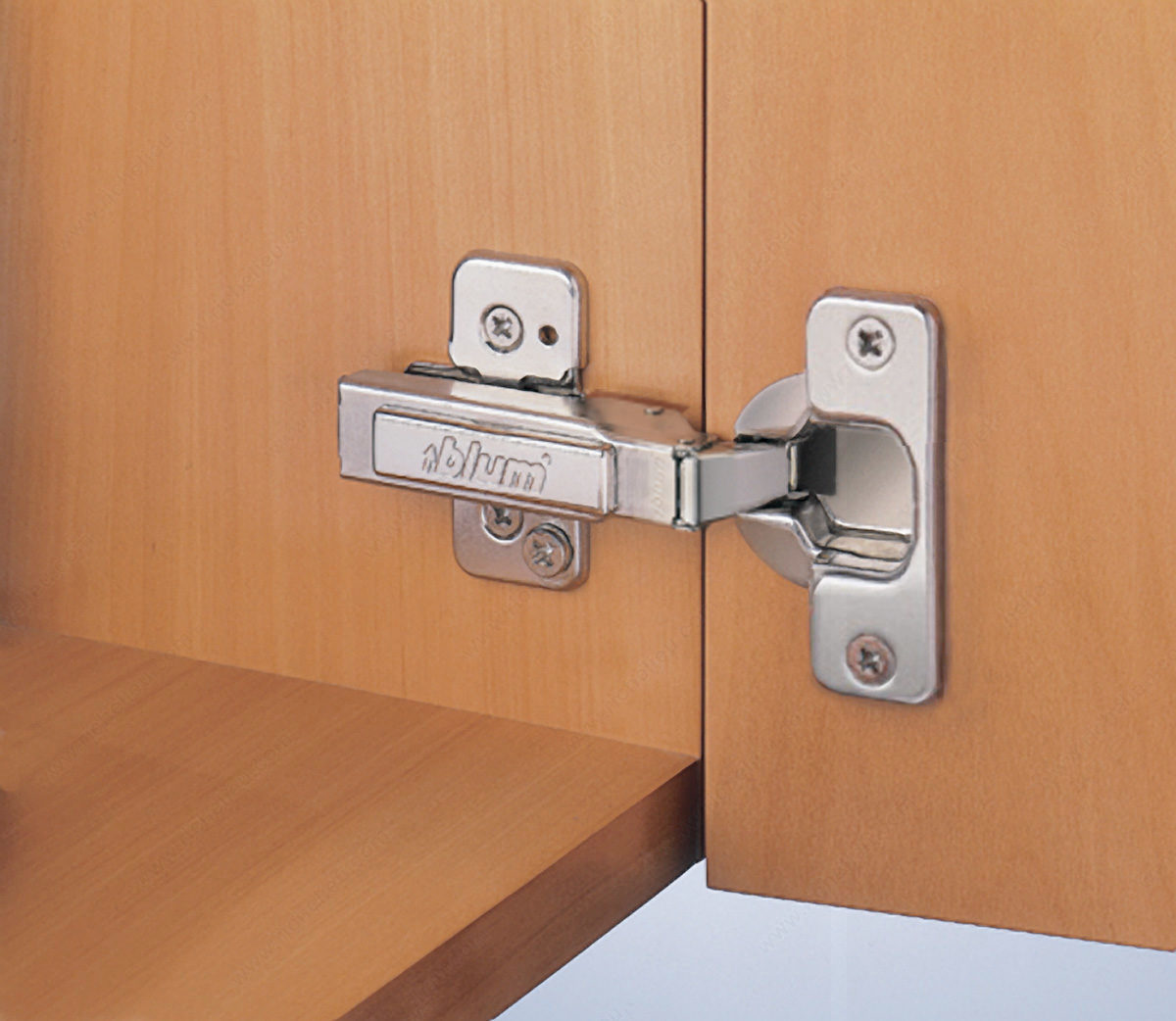

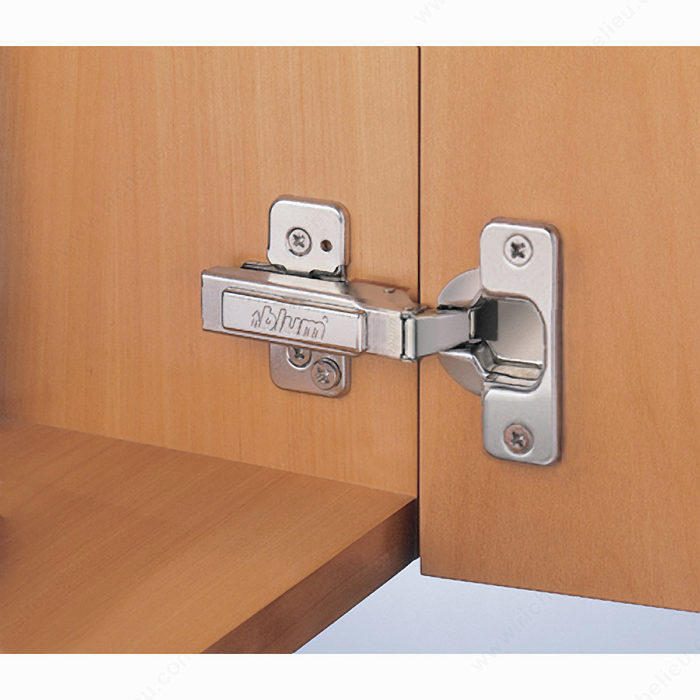

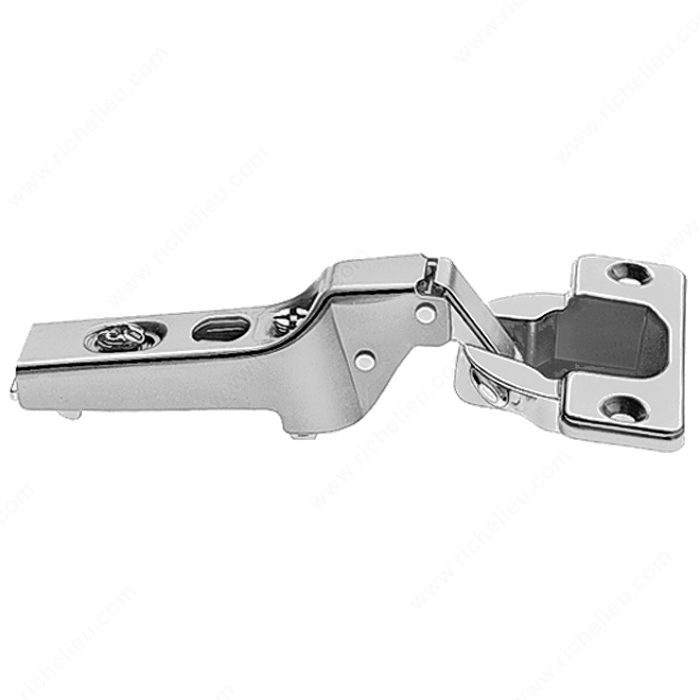

Richelieu 71M268180 CLIP Hinge - 100 offers an ergonomic design that ensures ease of handling, making it an ideal choice for professionals and knowledgeable homeowners alike. This hinge features a unique fixing mechanism that allows for rapid and secure connections to the mounting plate, streamlining the installation process. Designed specifically for frameless cabinets with a thickness of 5/8 inch, this hinge accommodates doors with a minimum thickness of 5/8 inch as well. It supports a half overlay door position and boasts an impressive hinge opening angle of +100°, enhancing accessibility in tight spaces. The spring closing mechanism ensures that doors close smoothly and securely each time. For optimal installation, the hinge requires a milling depth of 1-3/32 inch and a milling diameter of 1-3/8 inch, allowing for precise fitting. The dowel fixing type enhances stability, ensuring that once installed, the hinge performs reliably over time. With packaging available per unit and the capability to ship via UPS, the Richelieu 71M268180 CLIP Hinge - 100 is a versatile and efficient option for your standard door needs. Trust in Richelieu’s quality and innovation for your next cabinetry project.
CLIP Hinge - 100
Ship via: Can Ship UPS
Cabinet Thickness: 16 mm

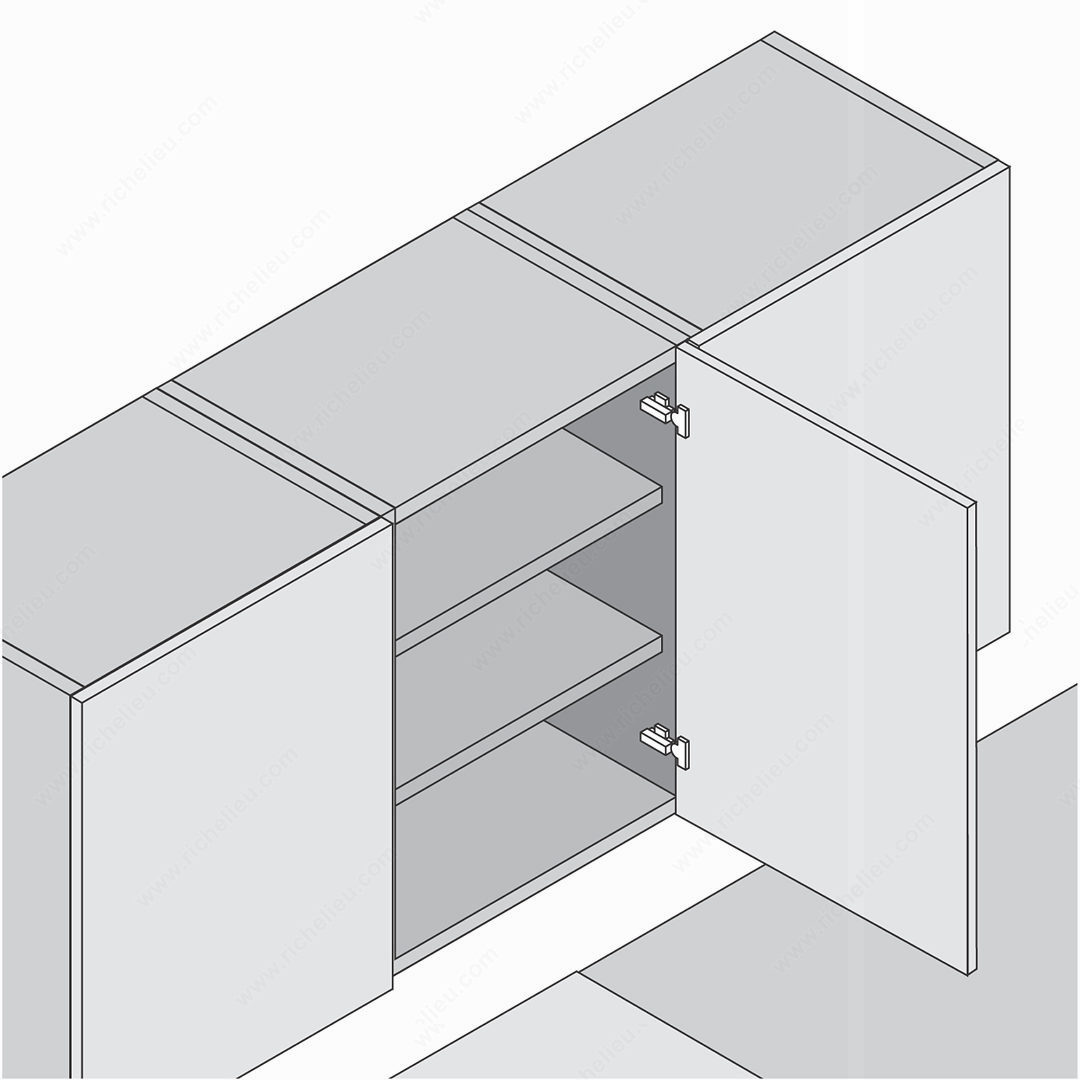

Cabinet Type: Frameless
Closing Mechanism: Spring Closing

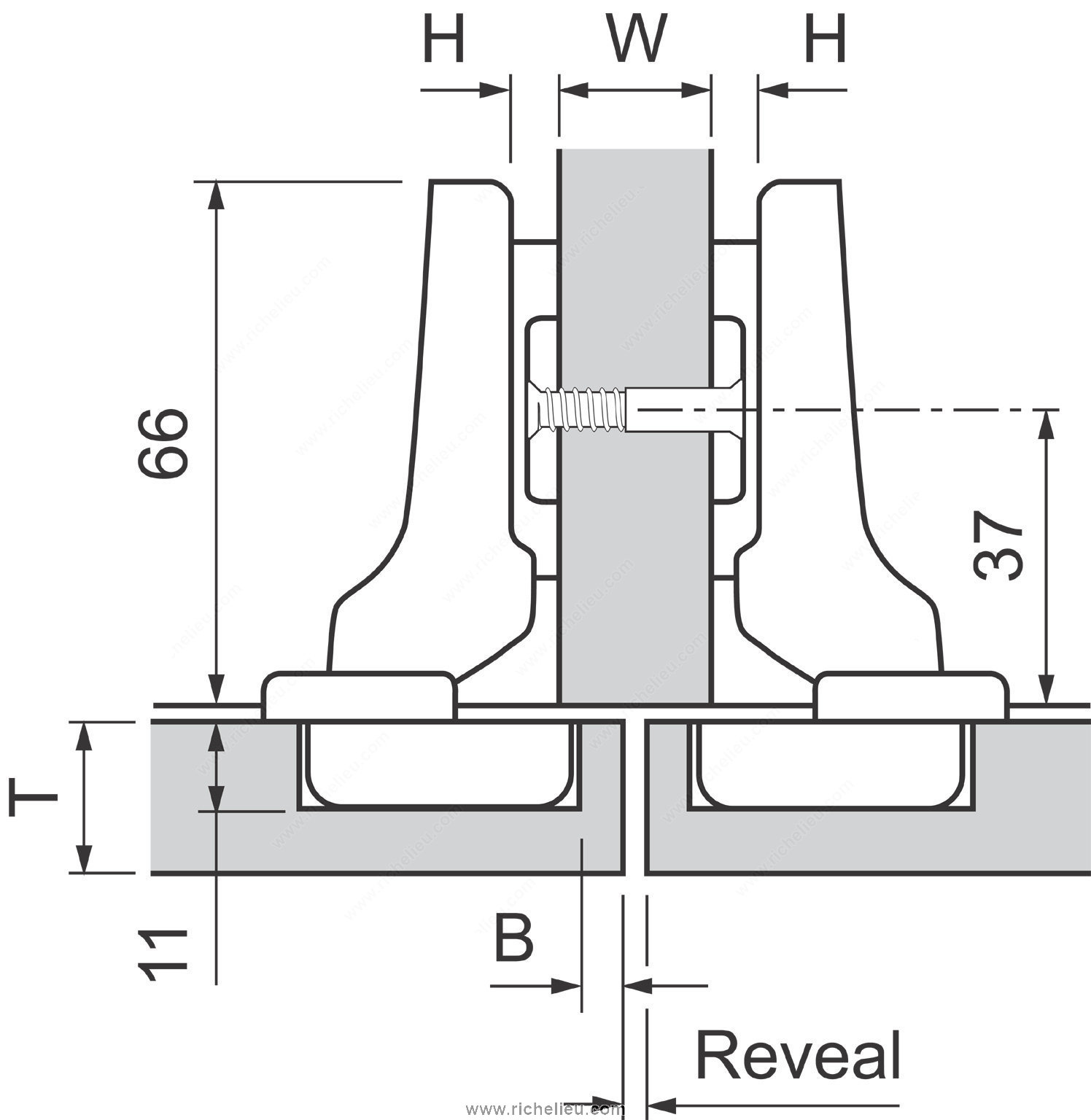

Door Position: Half Overlay
Door Thickness: Min. 16 mm
Fixing Type: Dowel
Hinge Opening Angle: +100°
Hinge Type: CLIP
Mechanism: Spring Closing

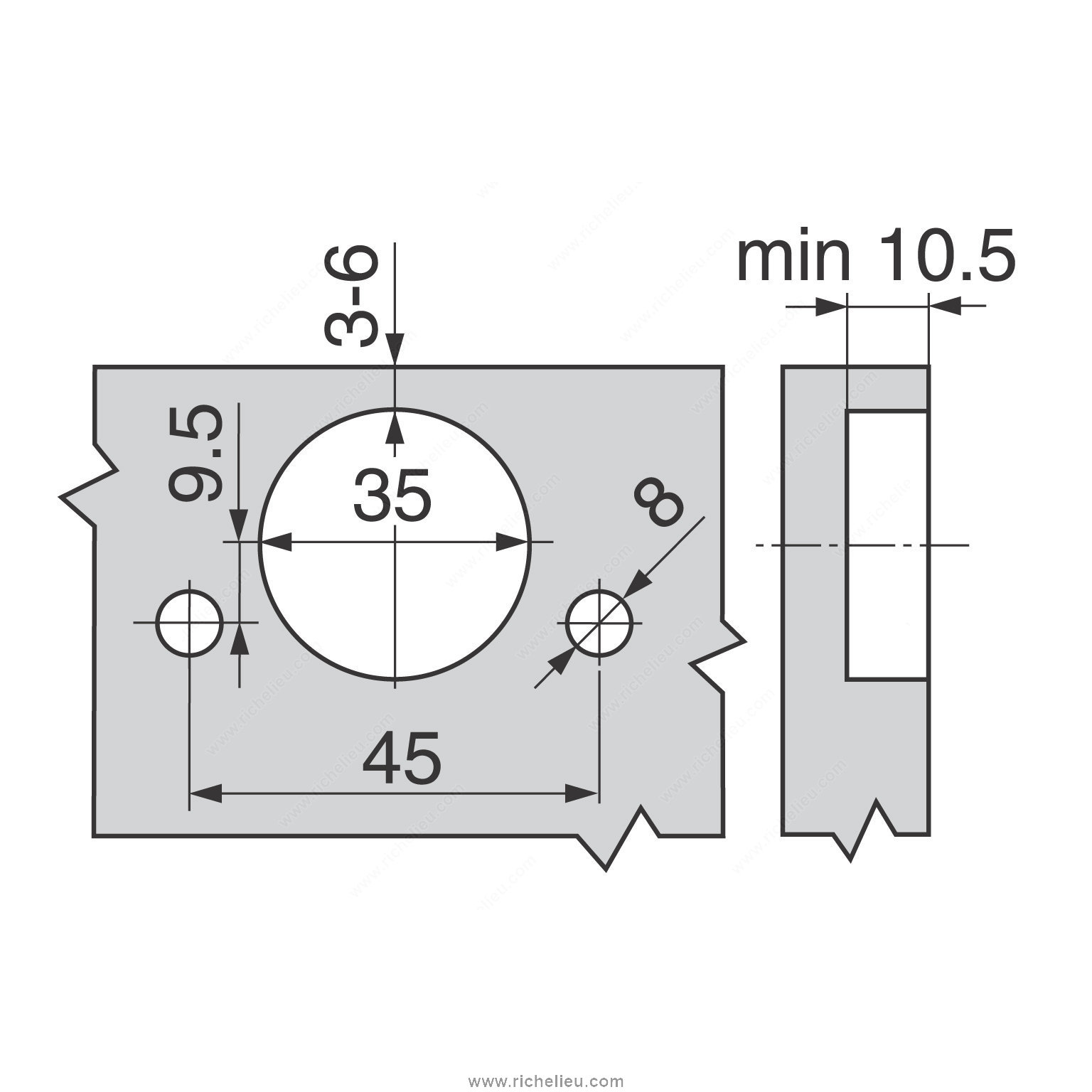

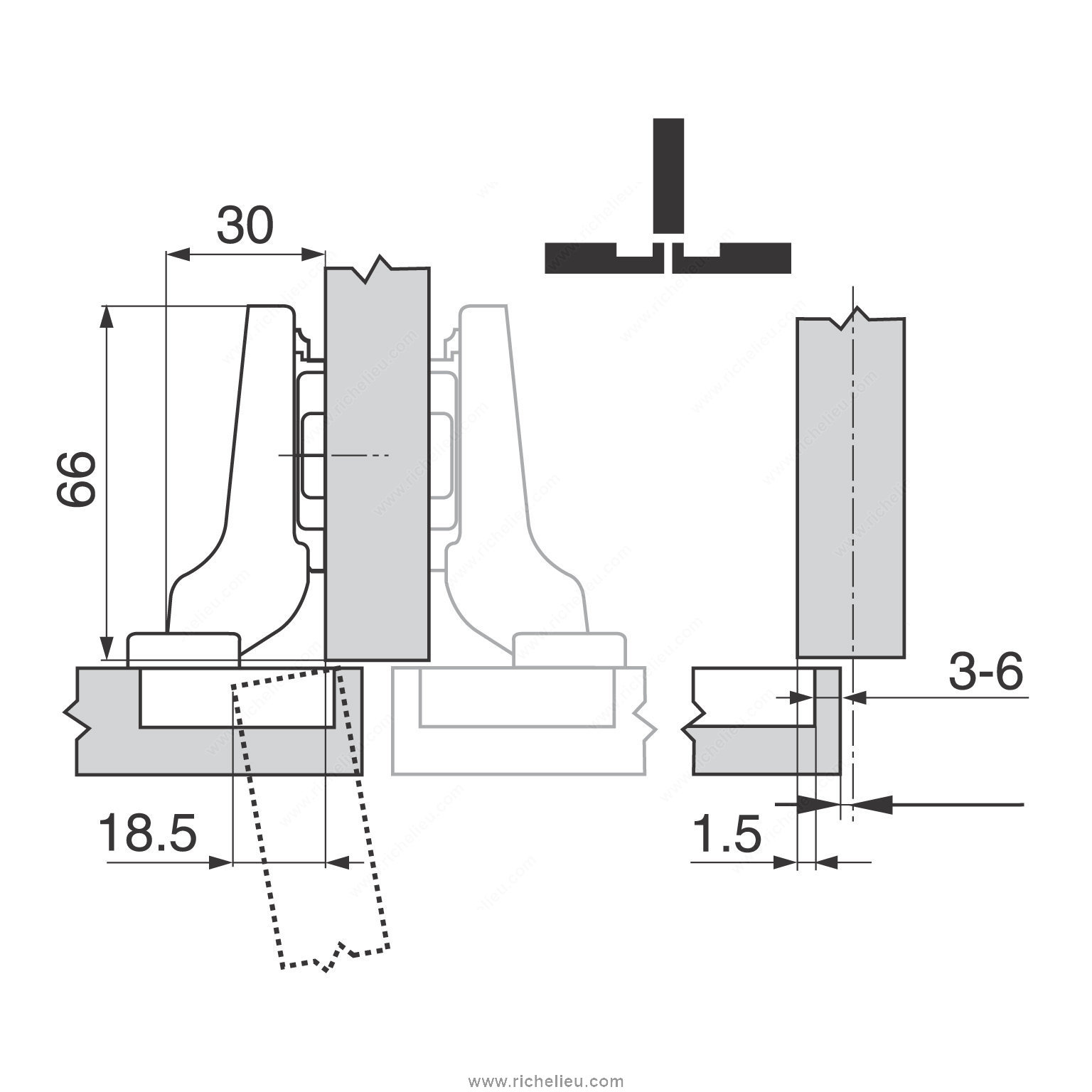

Milling Depth: 10.5 mm
Milling Diameter: 35 mm
Packaging Specifications: Not Applicable
Packaging format: Per unit
Product #: 71M268180
Product number: 71M268180
Screw/ Nail: N/A
Unit 1: case - 250
Use Type: Standard Door
