Richelieu 8930149 HAWA JUNIOR SoftMove 100 SetLow opening force max. 22N
The HAWA JUNIOR SoftMove 100 is soft close mechanism set for wood door weight capacity up to 100 kg each.
Features:
- Simple to install mechanism concealed into the upper track

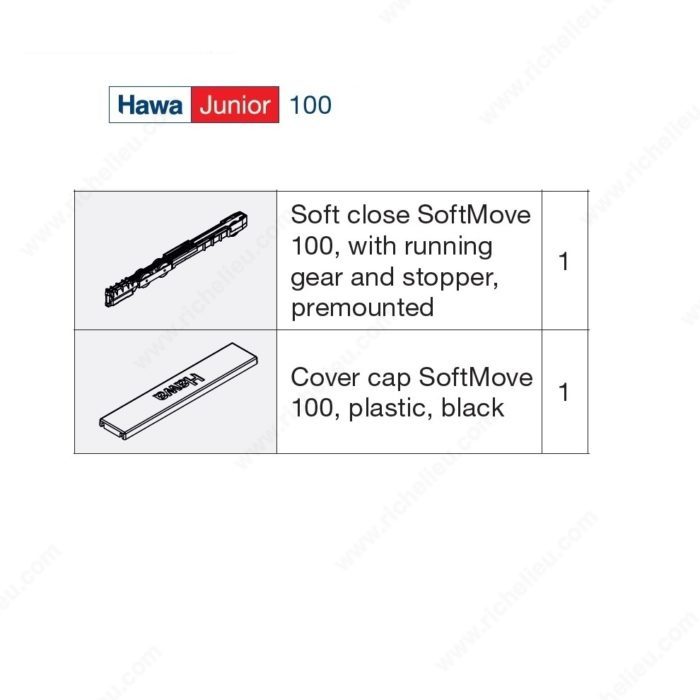

- Choose from two types of kits including running gear (wheels) single action and double kit
- Minimum door width 800 mm for double soft close.
- Low opening pull force maximum 22 N
- Manufacturers performance guarantee 7 years
- Compatible for Hawa Junior 100 Z and B sliding door systems
IMPORTANT: Must order HAWA JUNIOR 100 Basic hardware set and upper tracks separately.
Use metric dimensions for greater accuracy during installation.
Advantages and benefits
- Minimum door width of 800 mm for double soft close.
- Low opening pull force maximum 22 N
- Manufacturers performance guarantee 7 years
- Compatible for Hawa Junior 100 Z and B sliding door systems
Important information
IMPORTANT:
- Use metric dimensions for greater accuracy during installation.
- The minimum door width 800 mm with double soft close.
- Please make sure to read the entirety of the installation manual before proceeding with the installation.
- Wear safety gear such as gloves, safety glasses, safety shoes, and ear protection.
- Every fastener used to attach the track to the wall must be fastened securely into a structural surface.
- Always remove debris/dust/residues (sawdust and/or aluminum) from all tracks and guide channels using a dry cloth during installation and before operating the system.
- Never spray lubricant on this product.
- Do not exceed stated limitations and parameters. This will cause early wear and performance failure, and will void the warranty.
Attributes
Ship via: Can Ship UPS
Application: Standard Access Door, Barn Door, Pocket Door
Brand: Junior
Compatible with: Hawa Junior 100
Detailed Door Movement: Single sliding
Door Height: 2 000 to 4 000 mm
Door Installation: Top Hung
Door Material: Wood
Door Movement: Straight Sliding
Door Width: 650 to 1 500 mm
Load Capacity: 179 to 220 lb*
Number of Doors: 1
Packaging format: Per unit
Product #: 8930149
Product type: Soft-Close
Product №: 8930149
Roller Position: Upper
Soft- Close Type: One-Way Operation
Soft- Closing: Yes
Track Mounting: Ceiling Mount, Wall Mount
Track type: Box Track
Weight Capacity per Door: 81 to 100 kg
