Richelieu DKO6301C CS Door Collection SetsFor telescopic and stacked doors
The CS Door Collection carriage and pick-up extrusion sets are designed for two or three telescopic and stacked sliding wood doors weighing up to 200 lb (90 kg) or 500 lb (227 kg) each.
Features:
- CarriSnap mounting suspension plate for the top of the door for mounting and releasing the upper trolley without tools
- Sets for 1-3/8 in (35 mm) or 1-3/4 in (45 mm) thick doors
- Sturdy vertical pick-up extrusions for smooth and secure movement (sold separately)
- Large wheel trolleys with precision ground bearings for smooth running
- No bottom guide channel required for door widths under 48 in (1219 mm)
- Simple, flexible and low-cost installation
IMPORTANT: Hardware carriage sets are sold separately from vertical pick-up profiles.
Advantages and benefits
- CarriSnap mounting suspension plate for the top of the door for mounting and releasing the upper trolley without tools
- Sturdy vertical pick-up extrusions for smooth and secure movement
- No bottom guide channel required for door widths under 48 in (1.2 m)
Important information
IMPORTANT: Hardware carriage sets are sold separately from vertical pick-up profiles.
Please make sure to read the entirety of the installation manual before proceeding with the installation.
A groove is required for the bottom of the door for the floor guide, see instructions.
Always remove debris/dust/residue (sawdust and/or aluminum) from all tracks and guide channels using a dry cloth during installation and before operating the system.
Never spray lubricant on this product.
Included products
Set for 2 doors:
- 4 upper trolleys
- 4 CarriSnap mounting suspension plates
- Track stopper
- 2 vertical pick up aluminum profiles (add DKO2DRA310)
- Floor guide
- U-bracket lower guide
- Adjustment tool

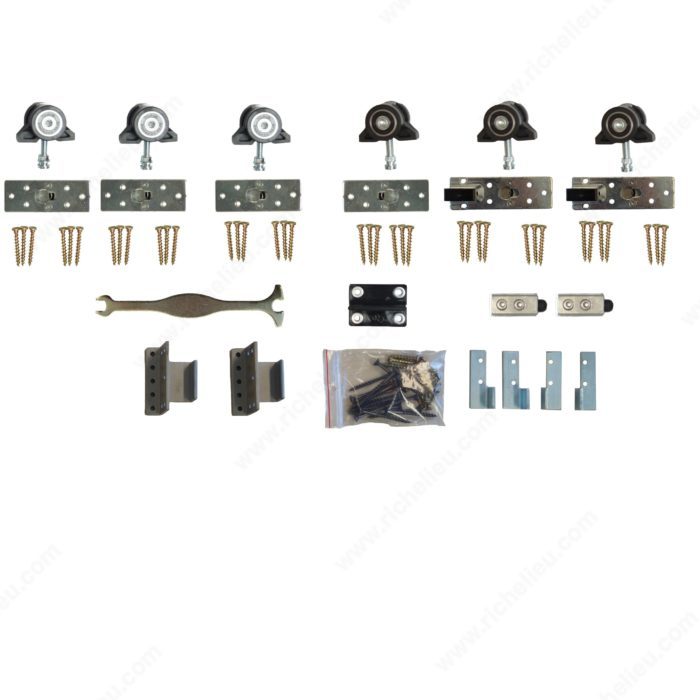

Set for 3 doors:
- 6 upper trolleys
- 6 CarriSnap mounting suspension plates
- 2 track stoppers
- 3 vertical pick up aluminum profiles (add DKO3DRA310)
- Floor guide
- 2 U-bracket lower guides
- Adjustment tool
Attributes
Ship via: No UPS - Common Carrier Only
Adjustable: Yes
Brand: Cavity Sliders
Compatible with: CS Door Collection
Detailed Door Movement: Telescoping, Stacking
Door Height: 120 in
Door Installation: Top Hung
Door Material: Wood
Door Movement: Movable Wall
Door Position: Inset/Inlay
Door Thickness: 1 3/8 in
Door Width: 24 to 71 in
Height - Overall Dimensions: 4 in
Length - Overall Dimensions: 16 in
Load Capacity: Max. 500 lb
Manufacturing Material: Metal, Aluminum, and Nylon
Material: Metal, Aluminum, and Nylon
Number of Doors: 3
Packaging Format: Box
Product #: DKO6301C
Product type: Hardware Set
Product №: DKO6301C
Roller Position: Upper
Roller Type: Ball Bearing
Soft- Closing: No
Stopper: One
Track Mounting: Ceiling Mount
Track type: Box Track
Unit: Set
Weight Capacity per Door: 200 to 500 lb
Width - Overall Dimensions: 5 in
