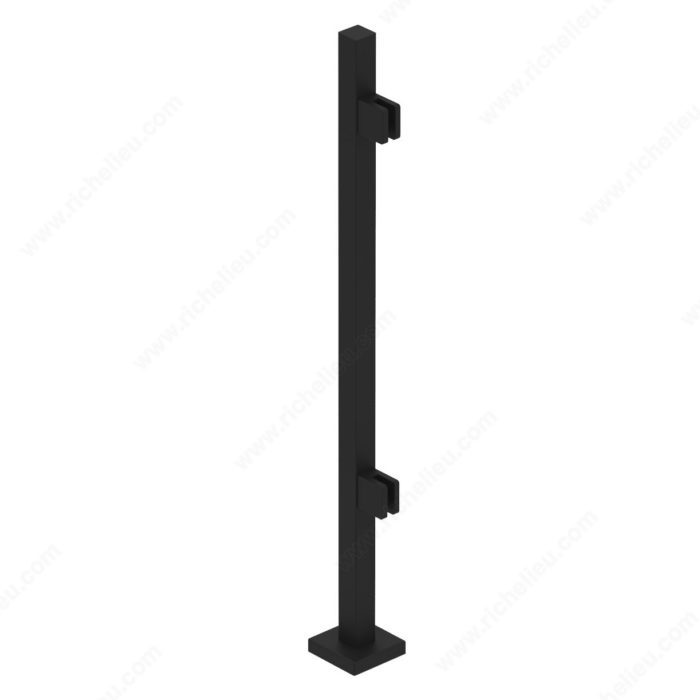

Richelieu SSPEFT36SBE900 Stair Bottom Posts - Frameless
For installation at the bottom of the stairs
Advantages and benefits
- Fully engineered and designed for indoor and outdoor projects
- Fully welded end caps provide an open and frameless look for an an unobstructed view
- Fully welded 4" solid cast stainless steel base plates with flat push-fit base plate covers
- Large square glass clamps secured by M8x20 stainless steel fasteners through flow-drilled and tapped holes to the posts included
- Suitable for 10 or 12 mm glass
For safety purposes, use tempered glass.

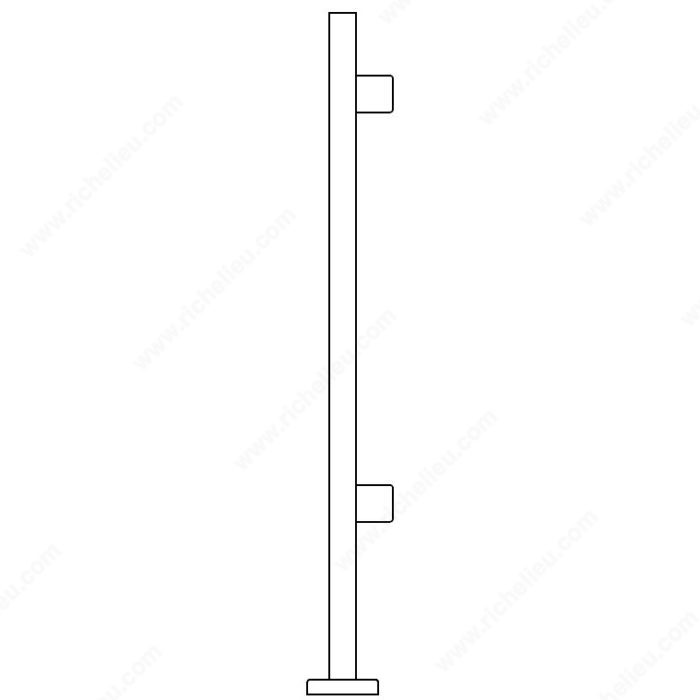

Configurations show the positions and sizes of posts only and do not include the placement of a handrail. For stairs, a handrail i s required to comply with code. Please consult with local building codes to adhere to requirements.
This illustration is provided for visual reference only. Actual product may vary. Order hardware before starting the job. The manufacturer reserves the right to change product and information without notice. Always follow the instructions inside the package.
The customer may not in any case make a claim following the use of these documents. The Company disclaims any responsibility for the structural details related to a construction or project.
Installation must always be done by qualified personnel. Make sure that the product is properly installed using suitable fixtures on the support material. Never exceed the maximum load or size recommended by the manufacturer.
- Large glass clamps with M8 x 20 fasteners
- Gaskets for 10 or 12 mm glass
- Base plate
- Base plate cover
Ship via: Can Ship UPS
Baluster Post Type: Square Tube
Color/ Finish: Matte Black
Configuration: Bottom Post
Finish: Matte Black
Height: 40 1/16 in
Manufacturing Material: Stainless Steel: 304
Material: Stainless Steel: 304
Mounting Position: Stair Front
Product №: SSPEFT36SBE900
Recommended Location Usage: Interior, Exterior
Safety Glass Thickness: 10 to 12 mm
Type of Mounting: Floor Mount
