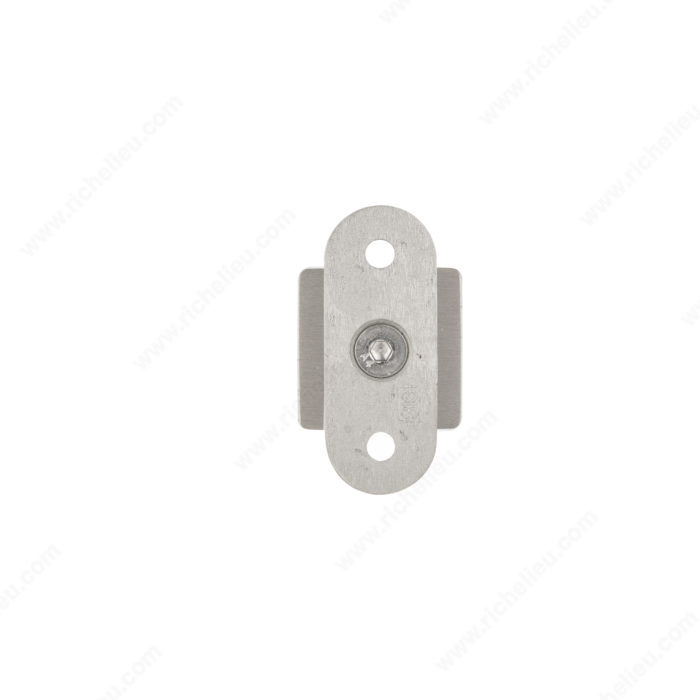

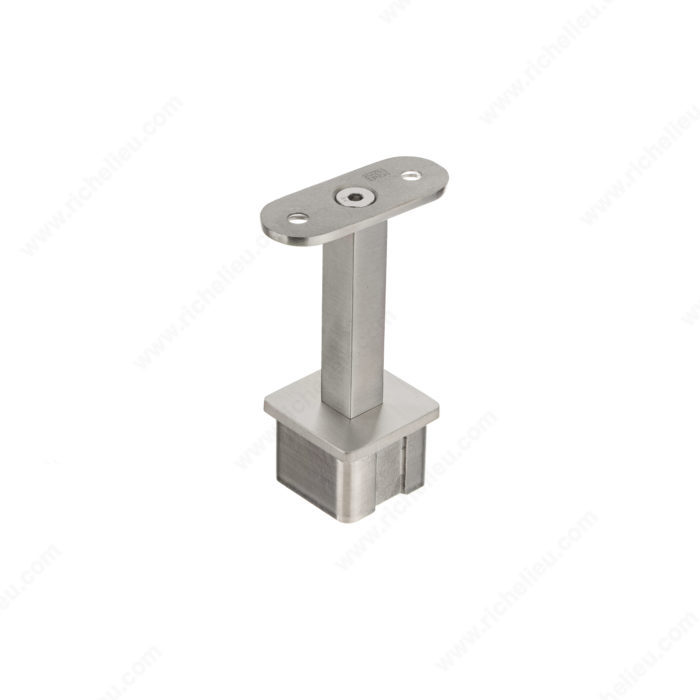

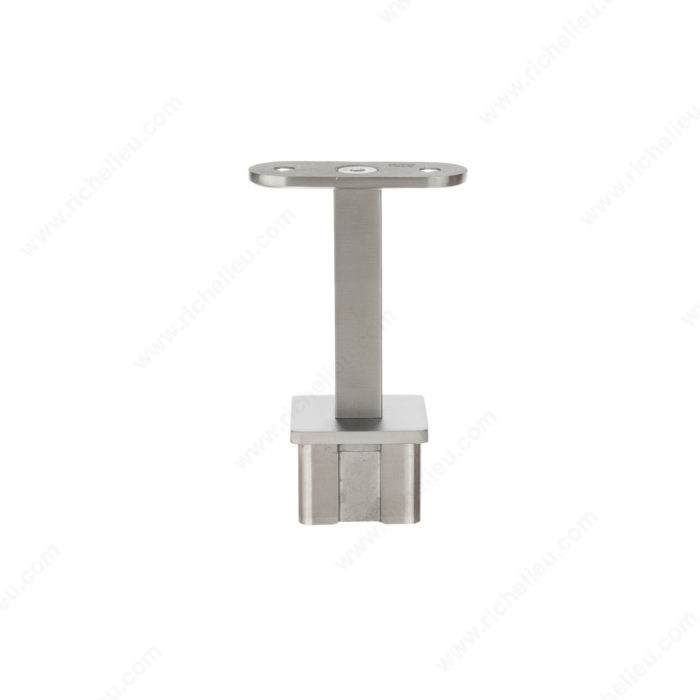

Richelieu SSZT24016170 Square Post Mount Fixed BracketFixed bracket
Fully welded stainless steel bracket, designed to support a handrail on a post.
Can be installed with square handrails.
Advantages and benefits
Easy to use: insert and glue the base of the bracket inside the top end of the square baluster pole.
Important information
This illustration is provided for visual reference only. Actual product may vary. Order hardware before starting the job. The manufacturer reserves the right to change product and information without notice. Always follow the instructions inside the package.
Drawings and technical documents contain examples of hardware from different manufacturers. The customer may not in any case make a claim following the use of these documents. The Company disclaims any responsibility for the structural details related to a construction or project. Installation must always be done by qualified personnel. Make sure that the product is properly installed using suitable fixings to the support material. Never exceed the maximum load or size recommended by the manufacturer. Never use a spray lubricant on this product.
The design of this product meets industry standards and safety code requirements. Always consult an authorized engineer prior to assembly to ensure that the installation meets the requirements of local building codes.
Application
Ideal for architectural projects such as staircases and glass, cable or rod balustrades
A glue strand during assembly helps to solidify and better secure the connection between the components.
Attributes
Ship via: Can Ship UPS
Adjustment: Fixed Position
Arm Height: 3 in
Arm Size: 9/16 in
Baluster Post Type: Square Tube
Category: Brackets
Color/ Finish: Stainless Steel
Finish: Stainless Steel
Glass Drilling: Not Required
Handrail Type: Flat Tubing
Manufacturing Material: Stainless Steel: 316
Material: Stainless Steel: 316
Product №: SSZT24016170
Recommended Location Usage: Interior, Exterior
Thickness: 3/32 in*
Type of Mounting: Post Mount
