Richelieu WEBKIT1243452 TERNO STEP 80 Fluid SeriesRichelieu WEBKIT1243452 TERNO STEP 80 FLUID Series offers an innovative solution for standard straight sliding wood door systems, accommodating door weights of up to 80 kg each. This versatile system is perfect for residential and commercial applications, including pocket doors, access doors, and room dividers. The TERNO STEP 80 FLUID Series features an automatic clip-on suspension bracket, allowing for quick, toolless door installation. Choose from various hardware options, including two shock absorber stops and two soft-close mechanisms that ensure smooth operation. The 80 kg soft-close mechanism is ADA compliant, providing a low pull force of just 2.1 kg for effortless use. With track options for both ceiling and wall mounts, this system adapts to your specific design needs. The anodized aluminum fascia is available for doors with thicknesses of 35 mm and 45 mm. Additionally, the system requires a groove at the bottom of the door for guiding, with an optional two-part floor guide available separately to eliminate cutting. Designed for doors ranging from 23 5/8 to 39 3/8 inches wide and 70 7/8 to 118 inches high, the TERNO STEP 80 FLUID Series is engineered for reliability and elegance in any space. Enhance your project with this high-quality sliding door system.
TERNO STEP 80 FLUID Series

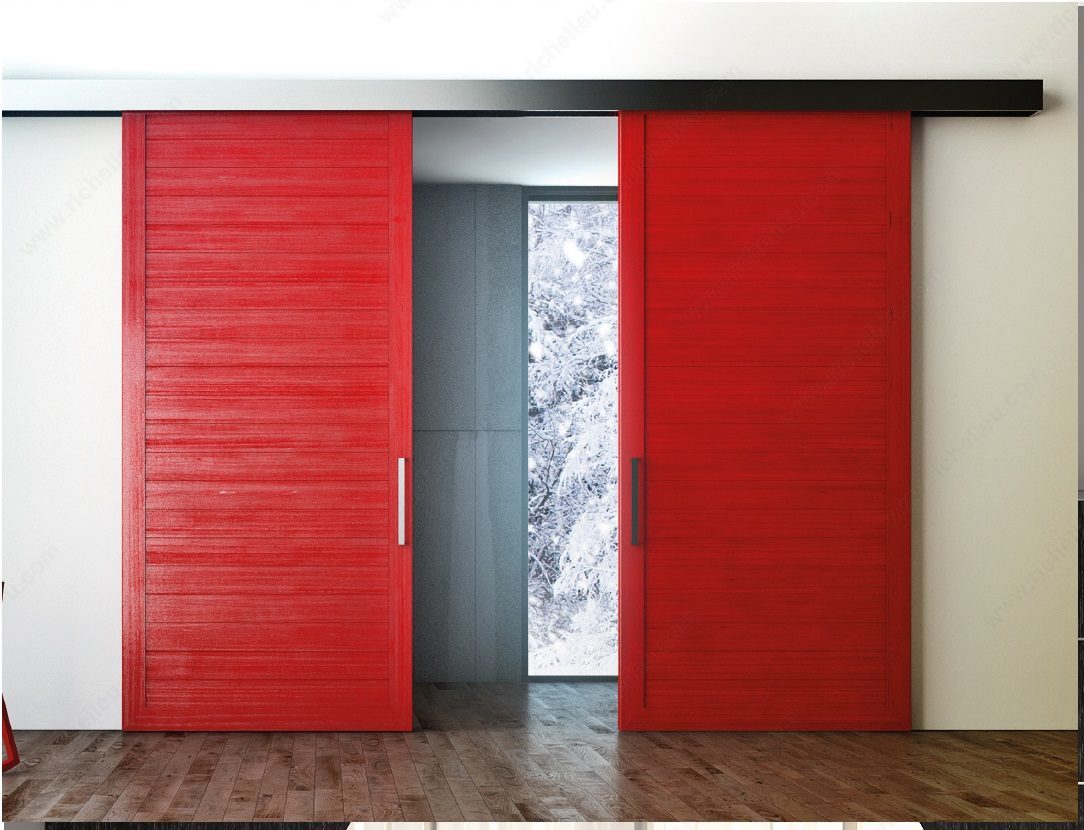

TERNO STEP 80 FLUID Series for standard straight sliding wood door system for wood door weight capacities 80 kg each.
Features:
- Automatic clip-on suspension bracket for quick toolless door installation
- Select from different hardware types
a) 2 shock absorber stops
b) 2 soft close mechanisms
- 80 kg soft close is ADA / Barrier-Free compliant low pull force 2.1 kg
- Track options for ceiling mount and wall mount
- Clip-on aluminum anodized fascia options for 35 mm and 45 mm thick doors
- Optional clips for wood fascia supplied by the Contractor
TERNO STEP 80 FLUID Series is an ideal solution for residential and commercial, pocket doors, multi-unit projects, access doors between rooms and room dividers.
IMPORTANT: Use metric dimensions for greater accuracy during installation.
Groove is required at the bottom of the door, see mounting instructions for details.
Optional two-part floor guide can be purchased separately to avoid cutting a groove.
Attributes
Ship via: No UPS - Common Carrier Only
Application: Standard Access Door, Barn Door, Pocket Door
Brand: STEP FLUID
Brand Model: Terno Step Fluid
Detailed Door Movement: Biparting
Door Height: 1 800 to 3 000 mm
Door Installation: Top Hung
Door Material: Wood
Door Movement: Straight Sliding
Door Thickness: 30 to 45 mm
Door Width: 600 to 1 000 mm
Function: Sliding Door
Groove Needed for Guiding System: Yes
Length - Overall Dimensions: 13 ft 1 in*
Load Capacity: 112 to 176 lb*
Number of Doors: 2
Overall Length: 4 000 mm
Product #: WEBKIT1243452
Product №: WEBKIT1243452
Roller Type: Ball Bearing
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Close Type: 2 Shock Absorber
Track Mounting: Wall Mount
Weight Capacity per Door: 51 to 80 kg
