Richelieu WEBKIT1243930 TERNO STEP 80 Fluid SeriesRichelieu WEBKIT1243930 TERNO STEP 80 FLUID Series offers a sophisticated solution for standard straight sliding wood door systems, accommodating door weights of up to 80 kg. This versatile system is ideal for a range of applications, including pocket doors, barn doors, and room dividers in both residential and commercial settings. Designed for ease of installation, the TERNO STEP 80 FLUID features an automatic clip-on suspension bracket, allowing for quick, toolless door setup. Choose from various hardware options, including two soft-close mechanisms and shock absorber stops that ensure a smooth, quiet operation. The low pull force of 2.1 kg meets ADA and Barrier-Free compliance, enhancing accessibility. With track options for ceiling or wall mounting, this system provides flexibility in design and installation. It supports door heights ranging from 70 7/8 to 118 inches and thicknesses from 1 3/16 to 2 5/32 inches. The system accommodates two doors, with a load capacity of 112 to 176 lbs. Please note that a groove is required at the bottom of the door for proper guiding, with an optional two-part floor guide available separately. Upgrade your space with the Richelieu TERNO STEP 80 FLUID Series-where functionality meets style.
TERNO STEP 80 FLUID Series
TERNO STEP 80 FLUID Series for standard straight sliding wood door system for wood door weight capacities 80 kg each.
Features:

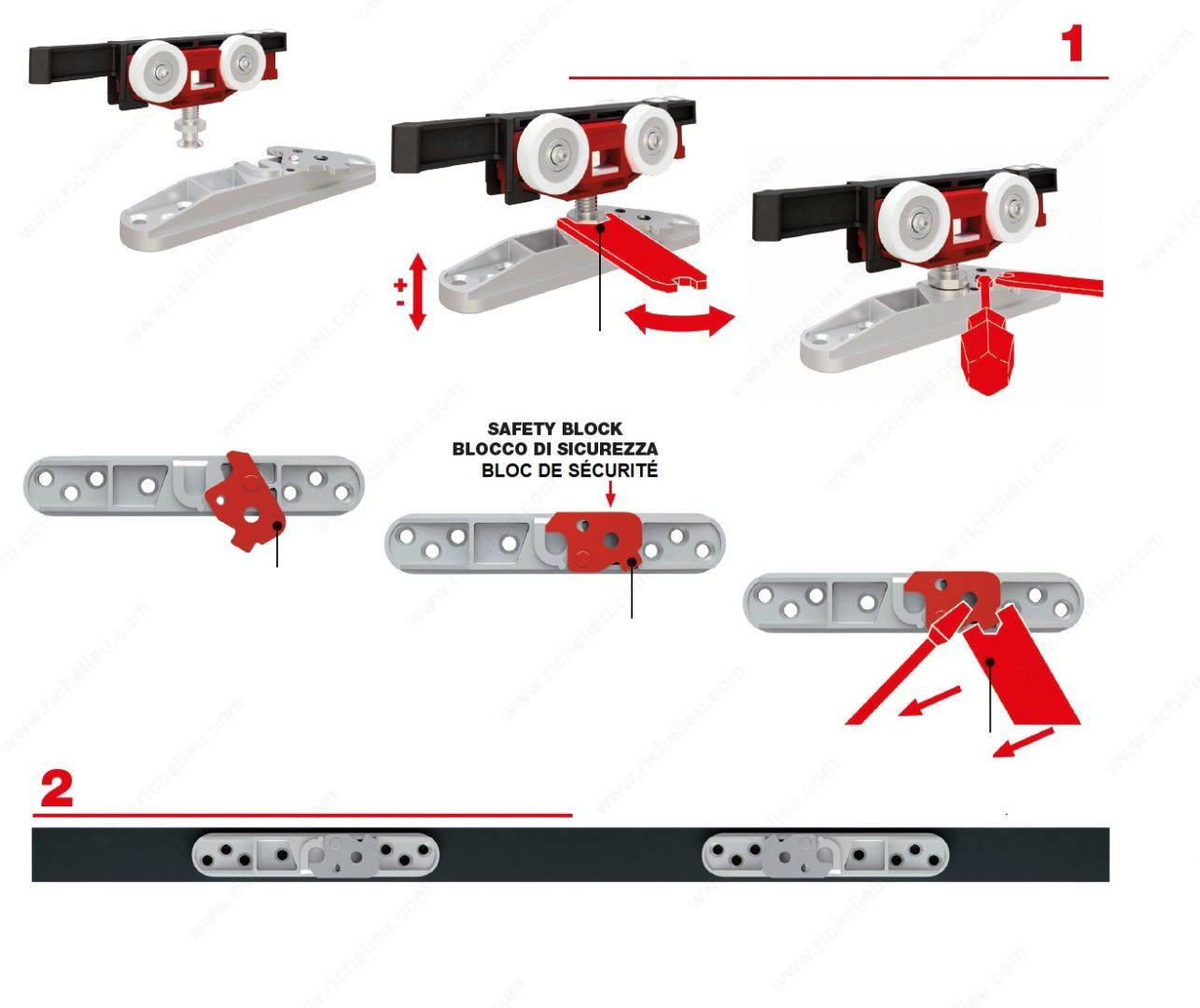

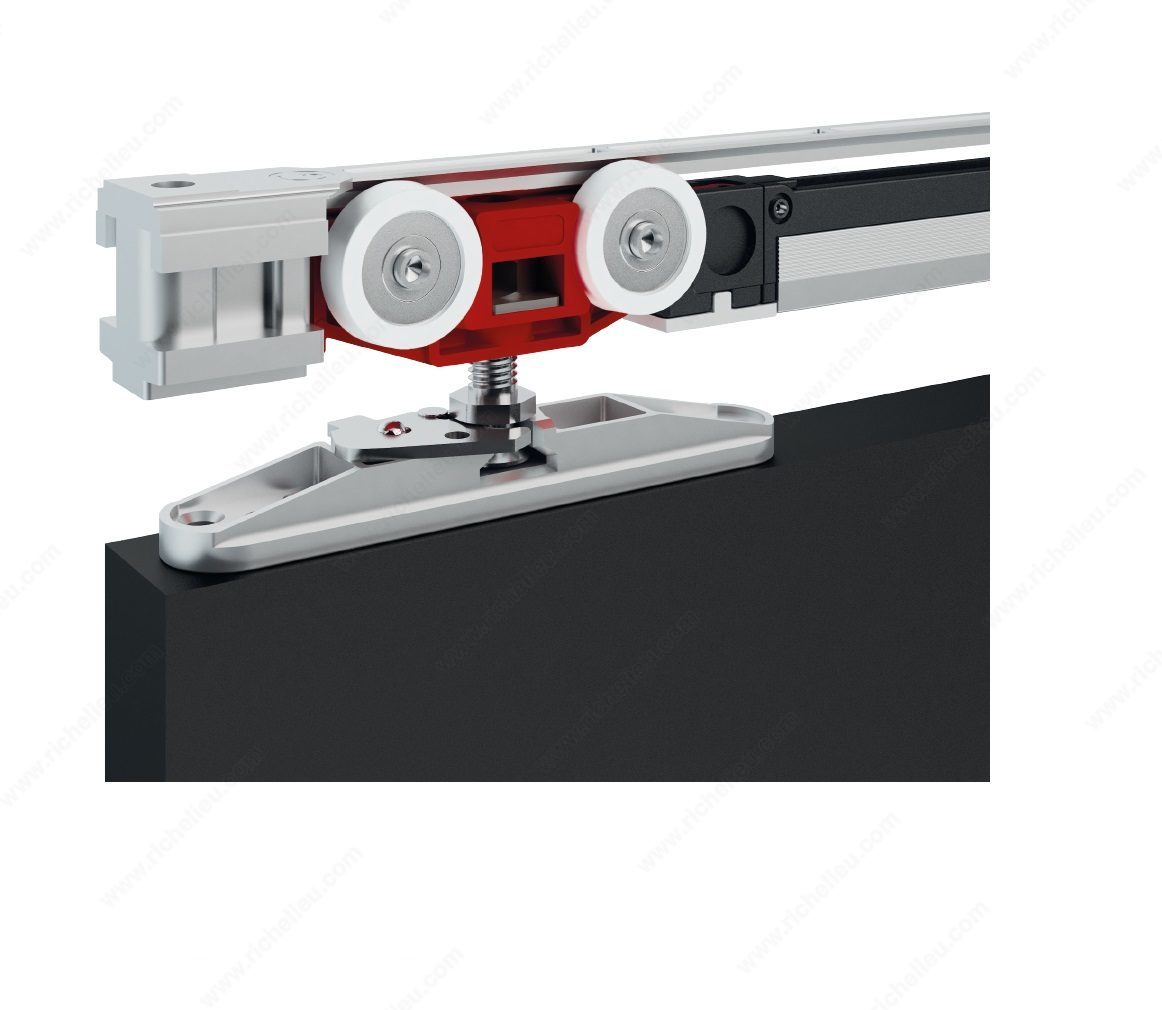

- Automatic clip-on suspension bracket for quick toolless door installation
- Select from different hardware types
a) 2 shock absorber stops
b) 2 soft close mechanisms
- 80 kg soft close is ADA / Barrier-Free compliant low pull force 2.1 kg
- Track options for ceiling mount and wall mount
- Clip-on aluminum anodized fascia options for 35 mm and 45 mm thick doors
- Optional clips for wood fascia supplied by the Contractor

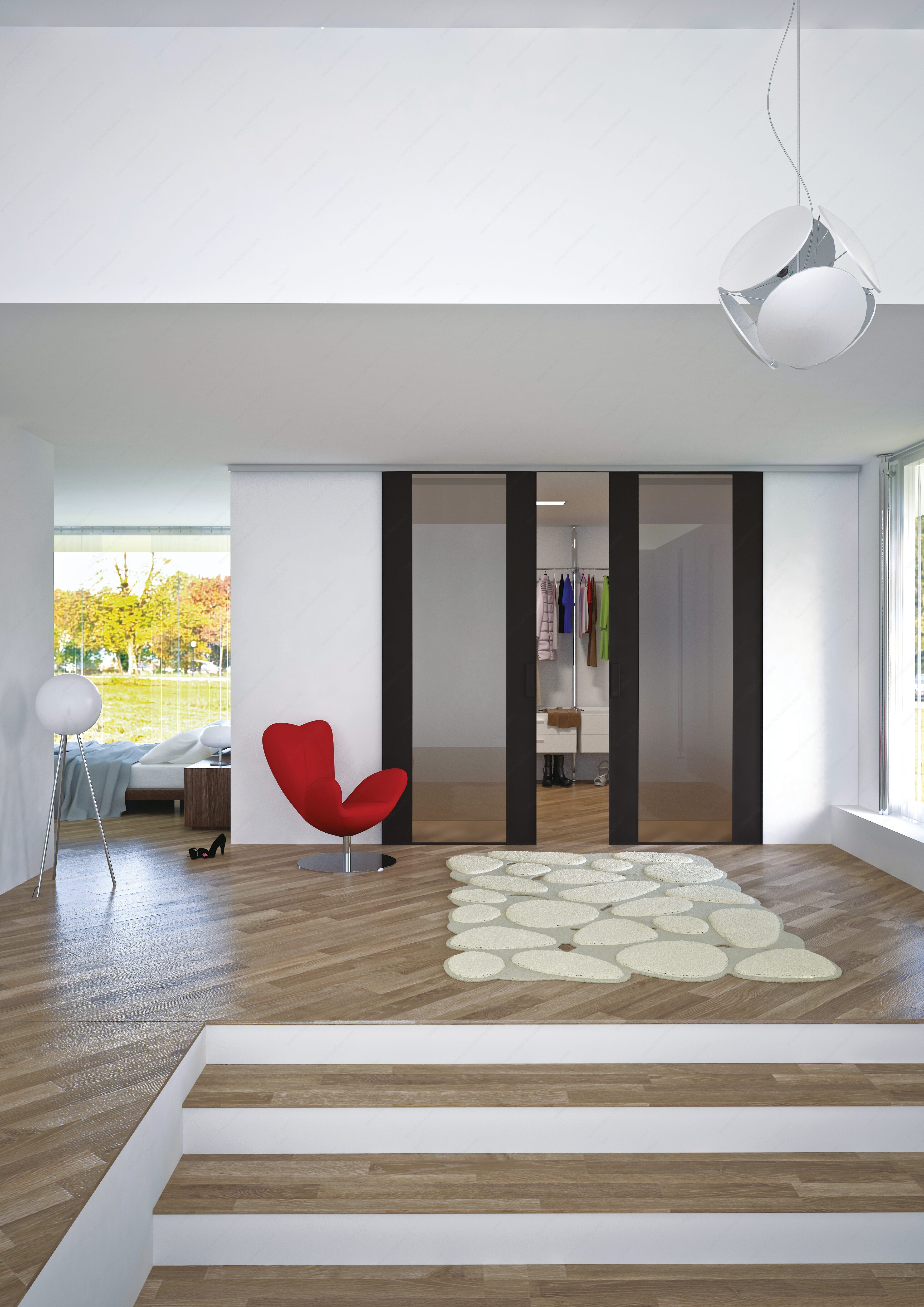

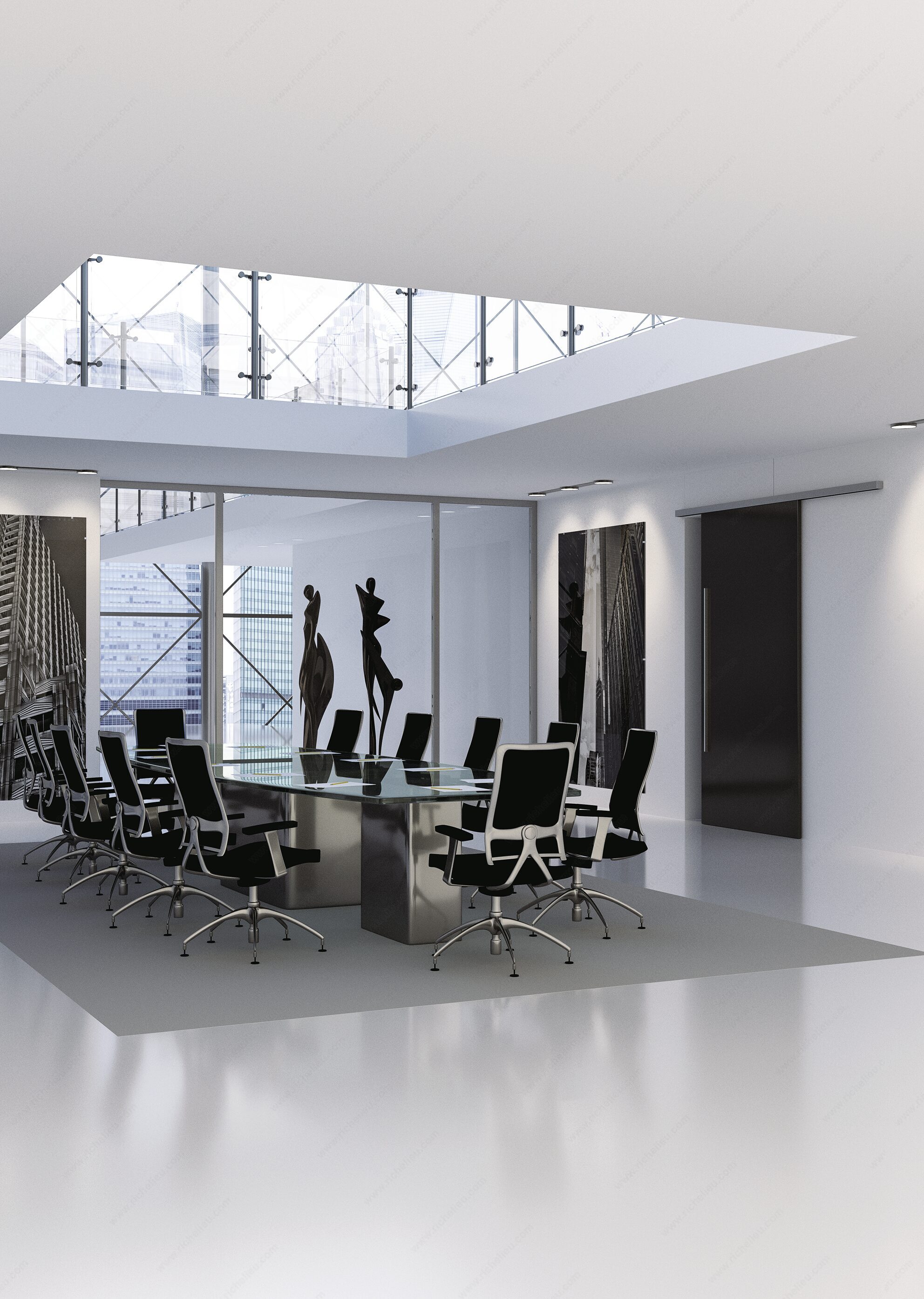

TERNO STEP 80 FLUID Series is an ideal solution for residential and commercial, pocket doors, multi-unit projects, access doors between rooms and room dividers.
IMPORTANT: Use metric dimensions for greater accuracy during installation.
Groove is required at the bottom of the door, see mounting instructions for details.
Optional two-part floor guide can be purchased separately to avoid cutting a groove.
Attributes
Ship via: No UPS - Common Carrier Only
Application: Standard Access Door, Barn Door, Pocket Door
Brand: STEP FLUID
Brand Model: Terno Step Fluid
Detailed Door Movement: Synchronized biparting
Door Height: 1 800 to 3 000 mm
Door Installation: Top Hung
Door Material: Wood
Door Movement: Straight Sliding
Door Thickness: 30 to 55 mm
Door Width: 610 to 1 000 mm
Function: Sliding Door
Groove Needed for Guiding System: Yes
Length - Overall Dimensions: 13 ft 1 in*
Load Capacity: 112 to 176 lb*
Number of Doors: 2
Overall Length: 4 000 mm
Product #: WEBKIT1243930
Product №: WEBKIT1243930
Roller Type: Ball Bearing
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Close Type: 2 Shock Absorber
Track Mounting: Ceiling Mount
Weight Capacity per Door: 51 to 80 kg
