Richelieu WEBKIT1249480 AVENTOS HF Top Set for Frameless or Partial Overlay Face Frame CabinetsRichelieu WEBKIT1249480 AVENTOS HF top set offers the perfection of motion for your wall cabinets, designed specifically for frameless or partial overlay face frame cabinets. This innovative bi-fold lift system caters to the demands of modern kitchens and living spaces, making it an ideal choice for taller wall cabinets ranging from 480 mm (18-7/8 in) to 1219 mm (48 in) in height and up to 1828 mm (72 in) in width. Crafted for ease of use, the AVENTOS HF top features an integrated BLUMOTION system, ensuring soft and effortless closing with light operating forces. The variable stop and integrated opening angle stop enhance functionality, while the symmetrical levers and tool-free assembly simplify installation. With two lift mechanism fixing methods and a 3-dimensional adjustment option for both doors, this system offers unparalleled convenience for homeowners and builders alike. The center hinge includes a finger safety feature, ensuring added security during operation. Available in a sleek dark gray finish, the AVENTOS HF top set is compatible with wood doors and wide aluminum-framed doors, making it a versatile addition to any cabinetry project. Choose Richelieu for quality and innovation that transforms every opening into a pleasurable experience.
AVENTOS HF top set for Frameless cabinet or partial overlay Face Frame cabinet
The Perfection of Motion for Your Wall Cabinets

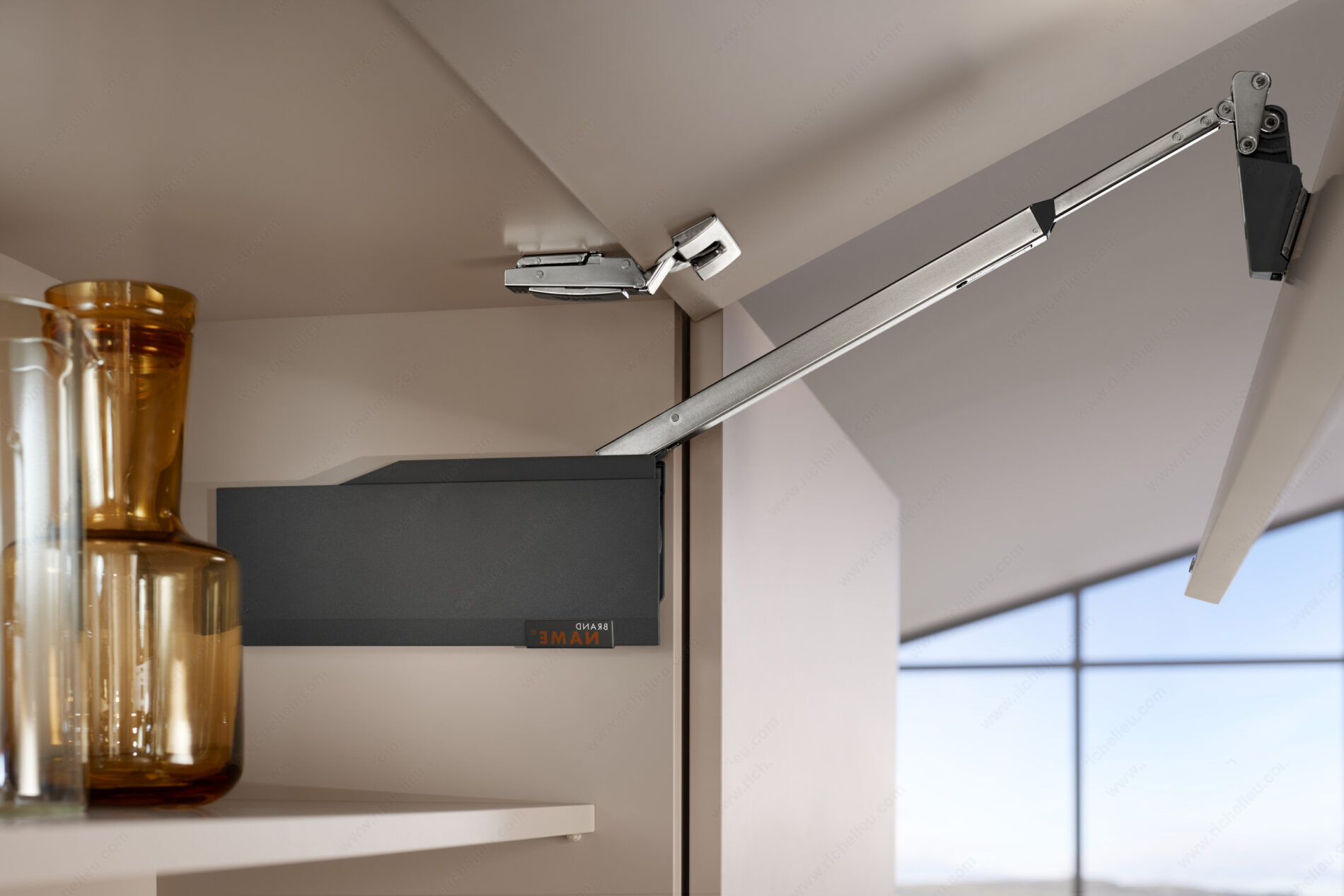

With AVENTOS HF top, enjoy a bi-fold lift system designed to meet the needs of modern kitchens and living spaces. Ideal for tall wall cabinets, it allows you to create elegant and functional fronts while ensuring optimal ease of use.
Key Product Features:
- Ideal for taller wall cabinets with bi-fold doors
- Cabinet height 480 mm (18-7/8 in) to 1219 mm (48 in)
- Cabinet width up to 1828 mm (72 in)
- Inside depth of at least 264 mm (10-3/8 in)
- Integrated BLUMOTION for soft and effortless closing
- Light operating forces
- Variable stop
- Integrated opening angle stop
- Fixed position of the lift mechanism and mounting plate for lever
- Symmetrical levers
- Tool-free assembly
- Two lift mechanism fixing methods
- 3-dimensional adjustment of both doors
- Center hinge with finger safety feature
With AVENTOS HF top, every opening becomes a pleasure, and every detail is designed to combine aesthetics with user comfort. Choose quality and innovation for your wall cabinets!
Attributes
Ship via: Can Ship UPS
Brand: Blum
Door Height: 23-5/8 to 35-7/8 in*
Door Length: Max. 72 in*
Door Type: Wood Door, Wide Aluminum-Framed Door
Finish: Dark Gray
Minimum internal depth of the enclosure: Min. 10-3/8 in*
Opening Types: Folding Opening
Power Factor: 880 to 1 698
Product #: WEBKIT1249480
Screw/ Nail: Wood Screw (Included)
