Richelieu WEBKIT1249483 AVENTOS HF Top Set for Frameless or Partial Overlay CabinetsRichelieu WEBKIT1249483 AVENTOS HF top set for frameless cabinets or partial overlay face frame cabinets offers the perfect blend of elegance and functionality for modern kitchens. This advanced bi-fold lift system is specifically designed for taller wall cabinets, accommodating heights from 480 mm (18-7/8 in) to 1219 mm (48 in) and widths up to 1828 mm (72 in). The AVENTOS HF top features a smooth, soft-closing mechanism thanks to the integrated BLUMOTION, ensuring that every cabinet door closes effortlessly. Its light operating forces and variable stop enhance user comfort, making it a pleasure to access your stored items. Designed for versatility, it supports wood doors and wide aluminum-framed doors, providing options to suit your aesthetic needs. With a minimum internal depth requirement of 264 mm (10-3/8 in), this system also incorporates a center hinge with a finger safety feature for added safety. Installation is straightforward, featuring tool-free assembly and two lift mechanism fixing methods. The three-dimensional adjustment of both doors allows for precise alignment. Choose the Richelieu AVENTOS HF top for your wall cabinets and experience the seamless combination of design and practicality, elevating your living space with innovative hardware solutions.

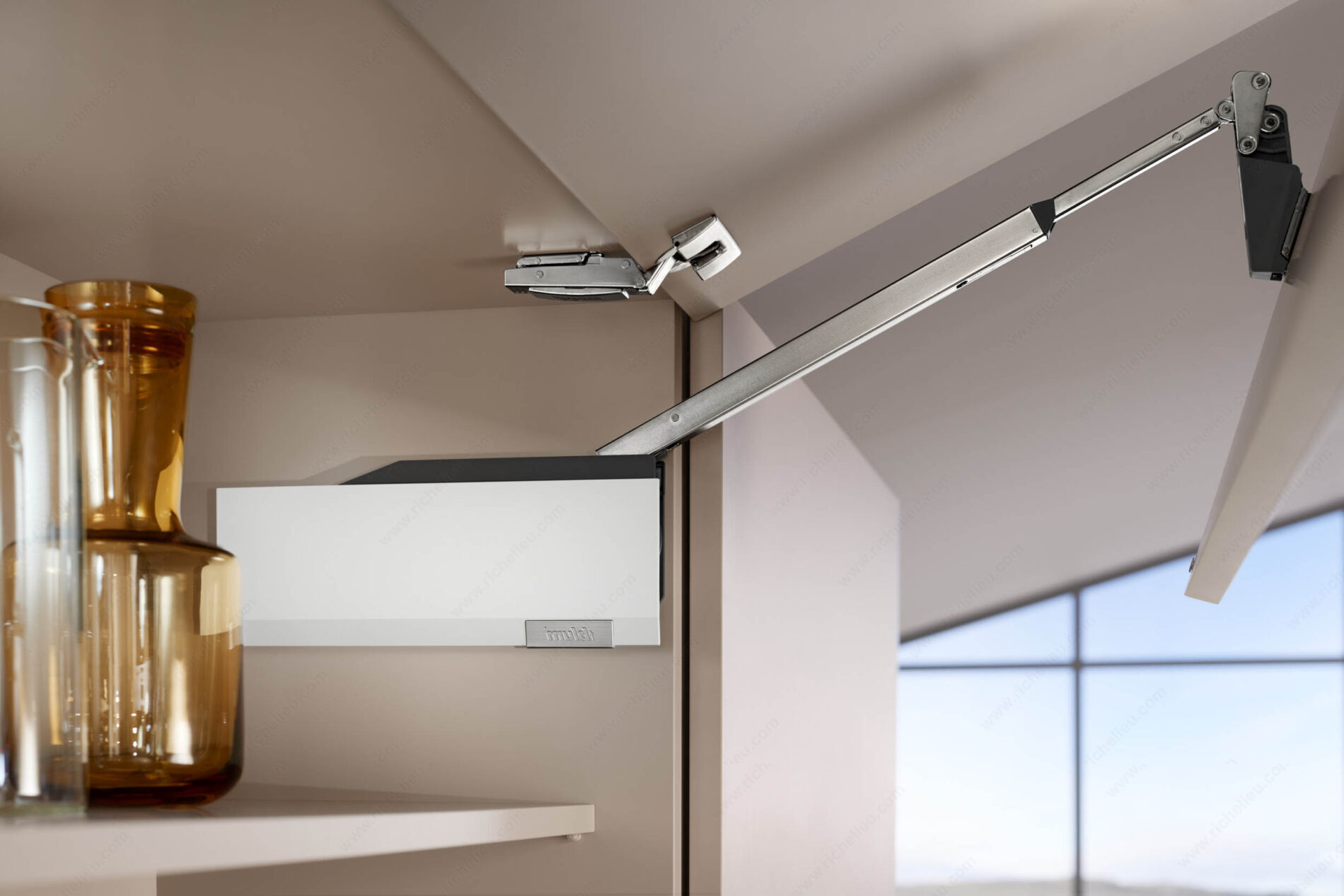

AVENTOS HF top set for Frameless cabinet or partial overlay Face Frame cabinet
The Perfection of Motion for Your Wall Cabinets
With AVENTOS HF top, enjoy a bi-fold lift system designed to meet the needs of modern kitchens and living spaces. Ideal for tall wall cabinets, it allows you to create elegant and functional fronts while ensuring optimal ease of use.
Key Product Features:
- Ideal for taller wall cabinets with bi-fold doors
- Cabinet height 480 mm (18-7/8 in) to 1219 mm (48 in)
- Cabinet width up to 1828 mm (72 in)
- Inside depth of at least 264 mm (10-3/8 in)
- Integrated BLUMOTION for soft and effortless closing
- Light operating forces
- Variable stop
- Integrated opening angle stop
- Fixed position of the lift mechanism and mounting plate for lever
- Symmetrical levers
- Tool-free assembly
- Two lift mechanism fixing methods
- 3-dimensional adjustment of both doors
- Center hinge with finger safety feature
With AVENTOS HF top, every opening becomes a pleasure, and every detail is designed to combine aesthetics with user comfort. Choose quality and innovation for your wall cabinets!
Attributes
Ship via: Can Ship UPS
Brand: Blum
Door Height: 23-5/8 to 35-7/8 in*
Door Length: Max. 72 in*
Door Type: Wood Door, Wide Aluminum-Framed Door
Finish: Silk White
Minimum internal depth of the enclosure: Min. 10-3/8 in*
Opening Types: Folding Opening
Power Factor: 238 to 1 188
Product #: WEBKIT1249483
Screw/ Nail: Wood Screw (Included)
